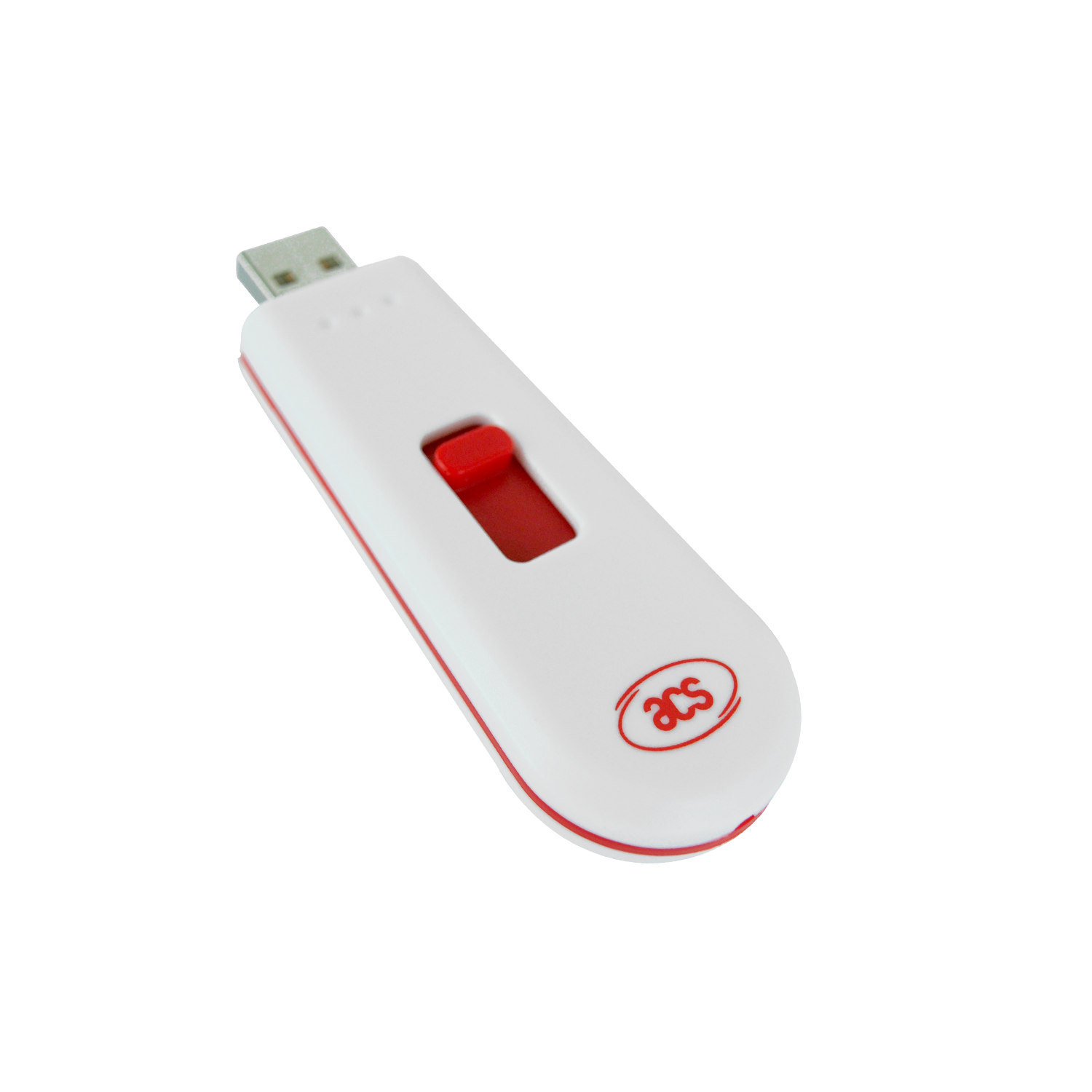

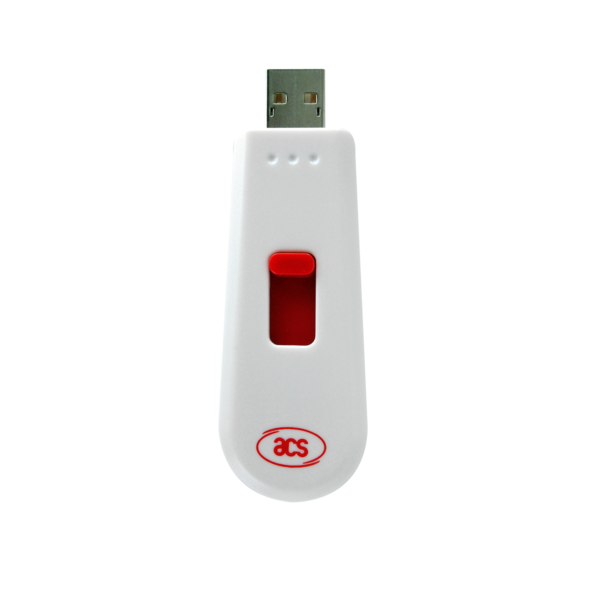

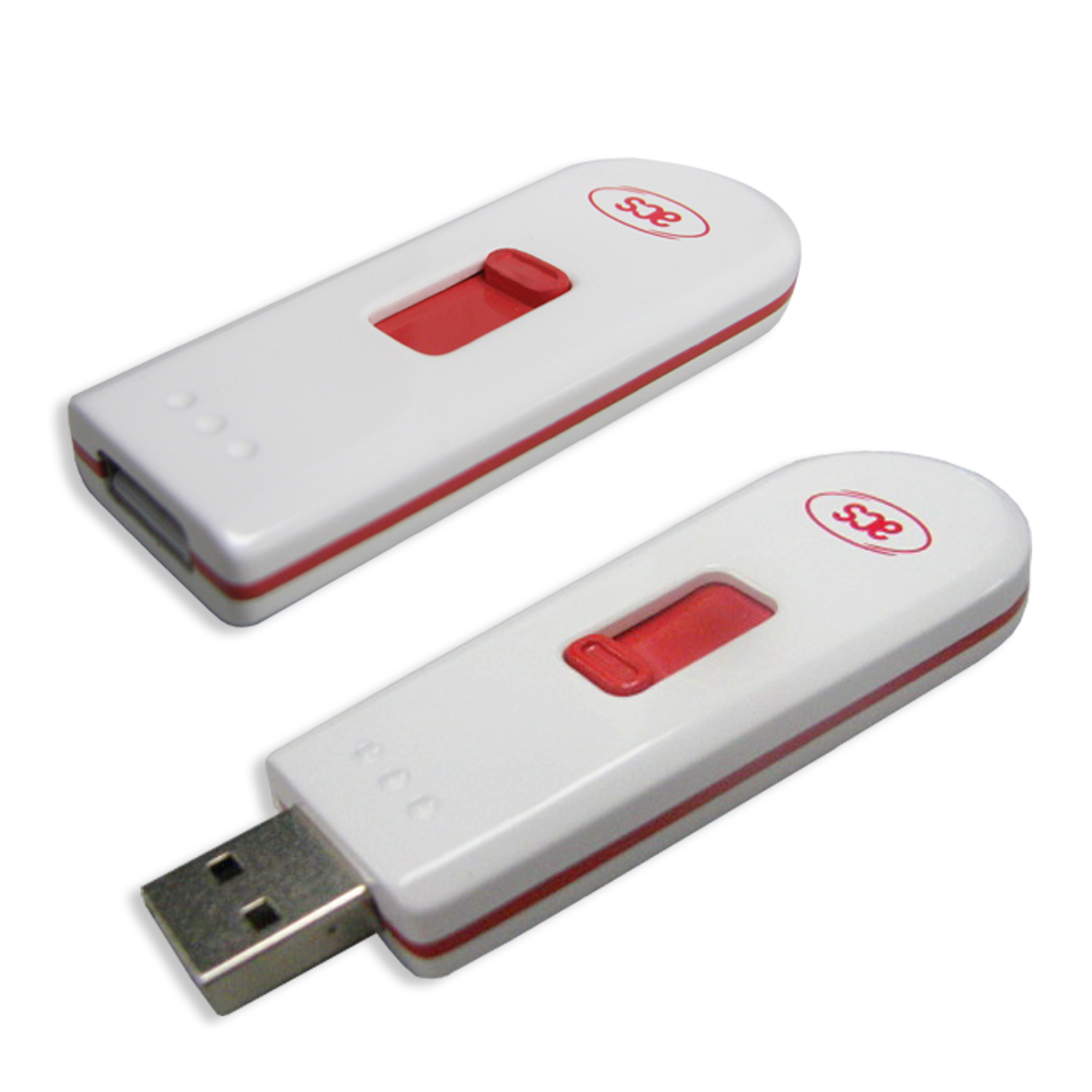

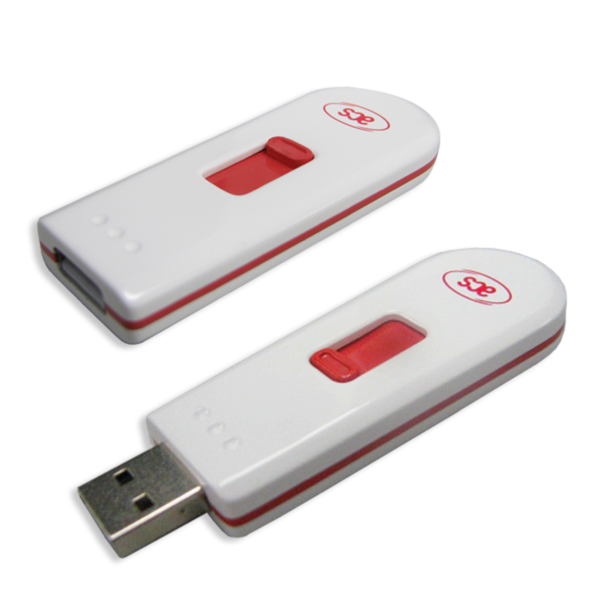

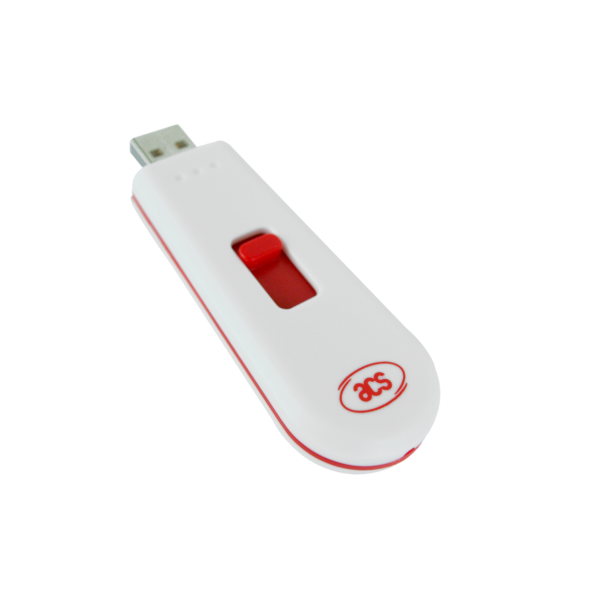

ACR122T USB Token NFC

The ACR122T NFC Contactless Smart Card Reader is the token version of the ACR122U NFC Reader. ACR122T is especially designed for Near Field Communication (NFC) applications requiring great portability and utmost user convenience.

Description

The ACR122T NFC Contactless Smart Card Reader is the token version of the ACR122U NFC Reader. ACR122T is especially designed for Near Field Communication (NFC) applications requiring great portability and utmost user convenience. Developed based on 13.56 MHz contactless (RFID) technology and the ISO/IEC 18092 standard for NFC, it supports not only MIFARE® and ISO 14443 Type A and B cards, but also all four types of NFC tags.

ACR122T is a plug-and-play USB device with CCID and PC/SC compliance, ensuring interoperability with different systems and applications. It is ideal for secure personal identity verification and online micro-payment transactions, including computer log-on, e-payment, home banking and network authentication.



Features:

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Smart Card Reader:
    • Read/write speed up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Type A and B, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
    • Built-in anti-collision feature (only 1 tag is accessed at any time)
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
    • User-controllable bi-color LED
  • Supports Android™ OS 3.1 and above



Applications:

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • Network Security
  • e-Purse & Loyalty
  • Transportation



Tech Specs:

Dimensions 75.0 mm (L) x 30.0 mm (W) x 12.7 mm (H)
Interface USB Full-Speed
Operating Distance Up to 30 mm (depends on the tag type)
Supply Voltage Regulated 5 V DC
Supply Current 200 mA (operating); 50 mA (stand-by); 100 mA (normal)
Operating Temperature 0 – 50 °C
Operating Frequency 13.56 MHz
Smart Card Interface Support
  • ISO14443 Type A & B
  • MIFARE
  • FeliCa
  • 4 types of NFC (ISO/IEC18092) tags
Compliance / Certifications
  • ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI,  RoHS 2,  USB Full Speed, Microsoft® WHQL
Operating System Support
  • Windows®
  • Win CE 5.0 and 6.0
  • Linux®
  • Mac OS®
  • Android™ 3.1 and above
