Description

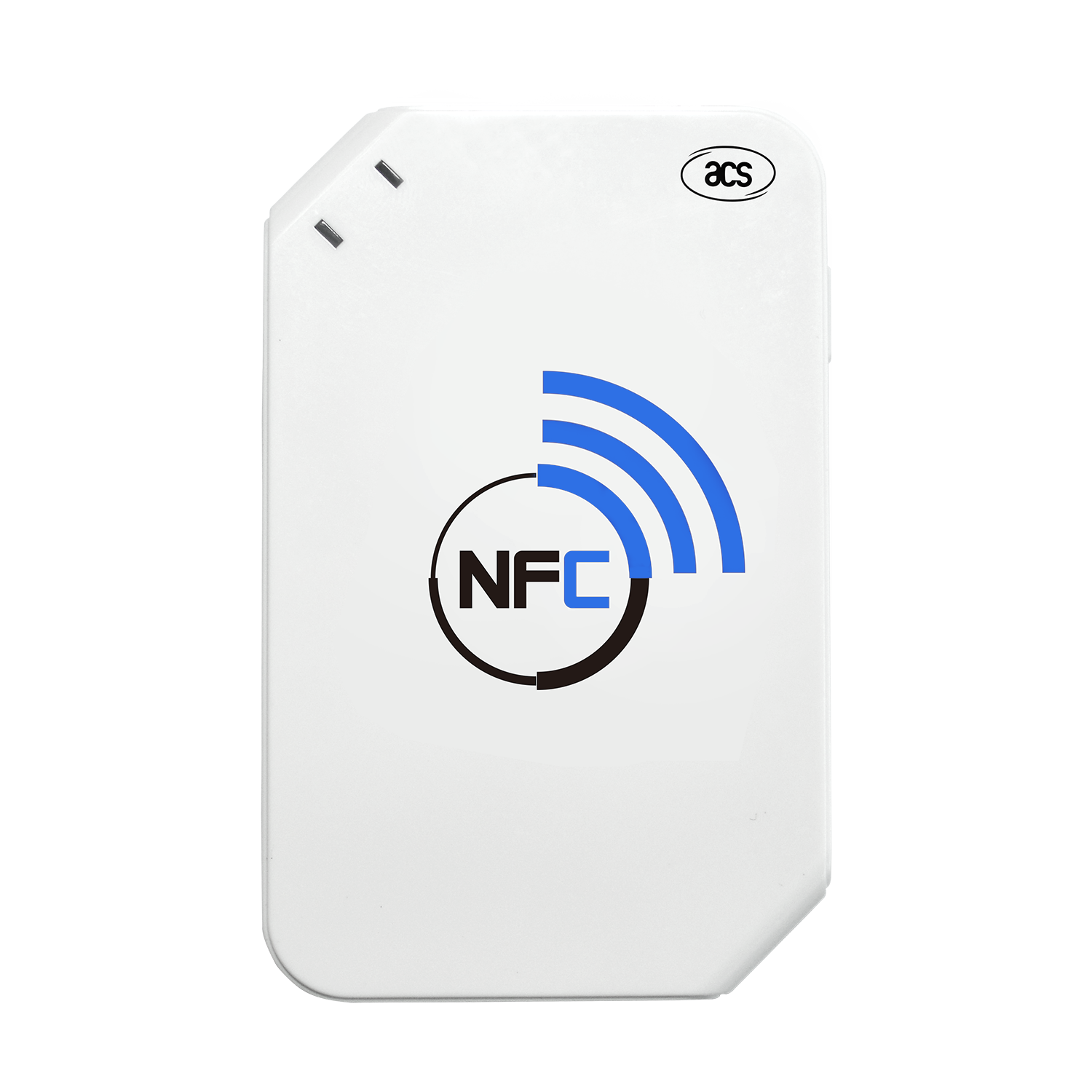

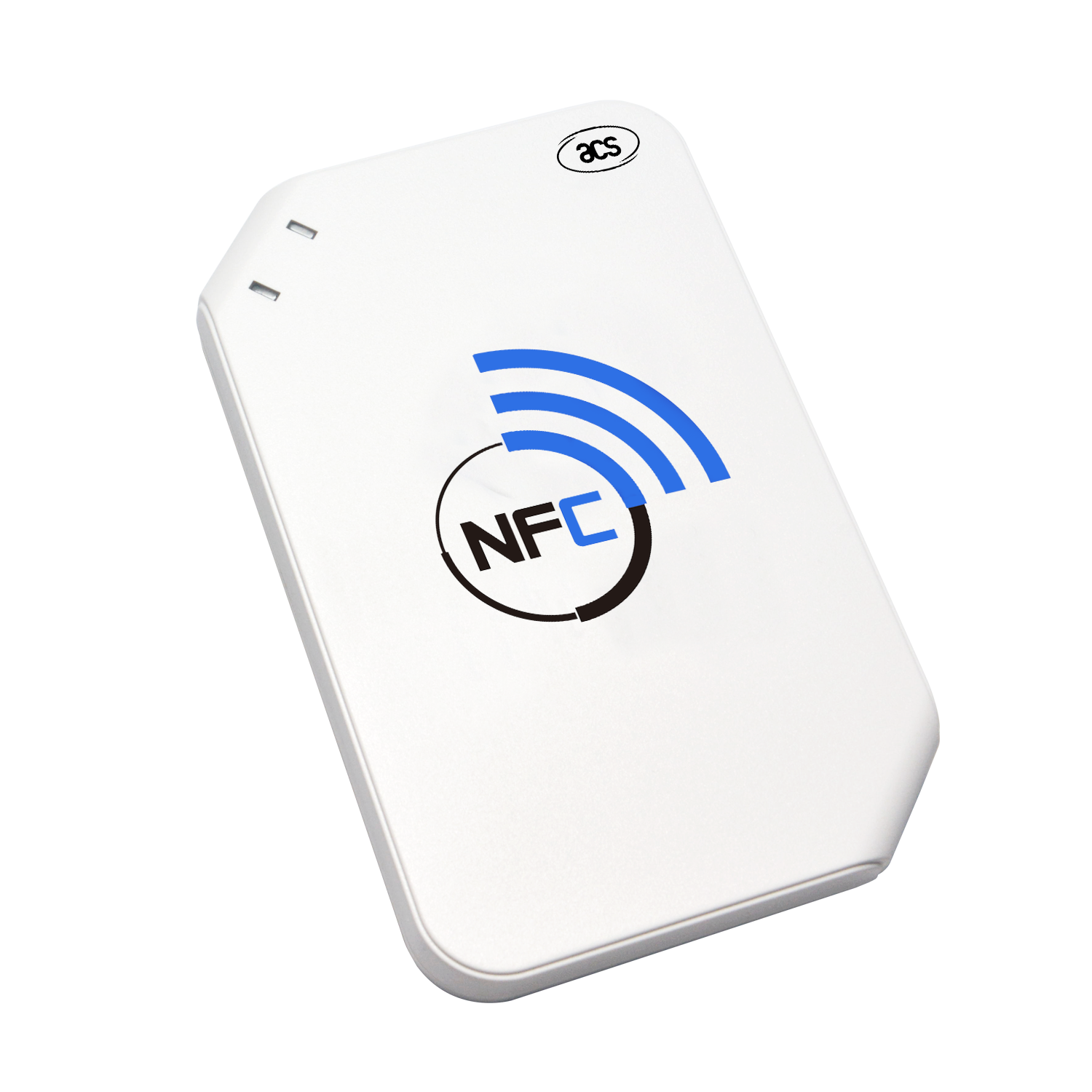

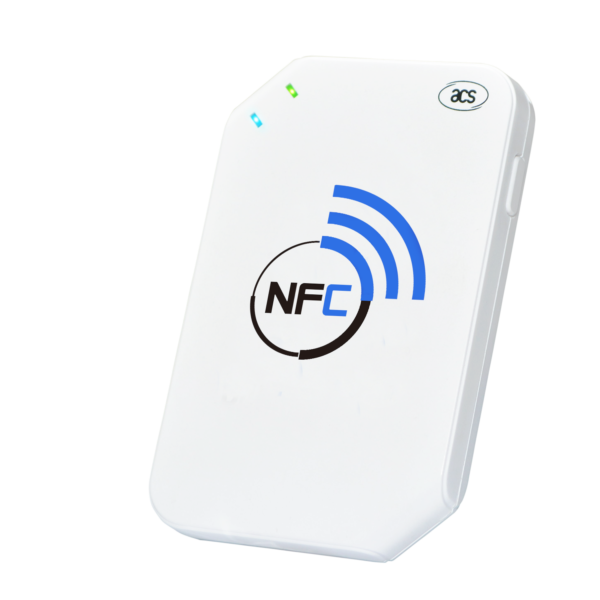

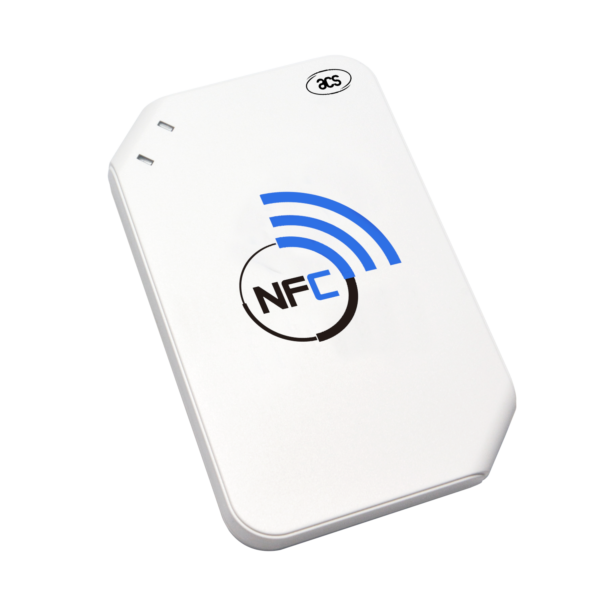

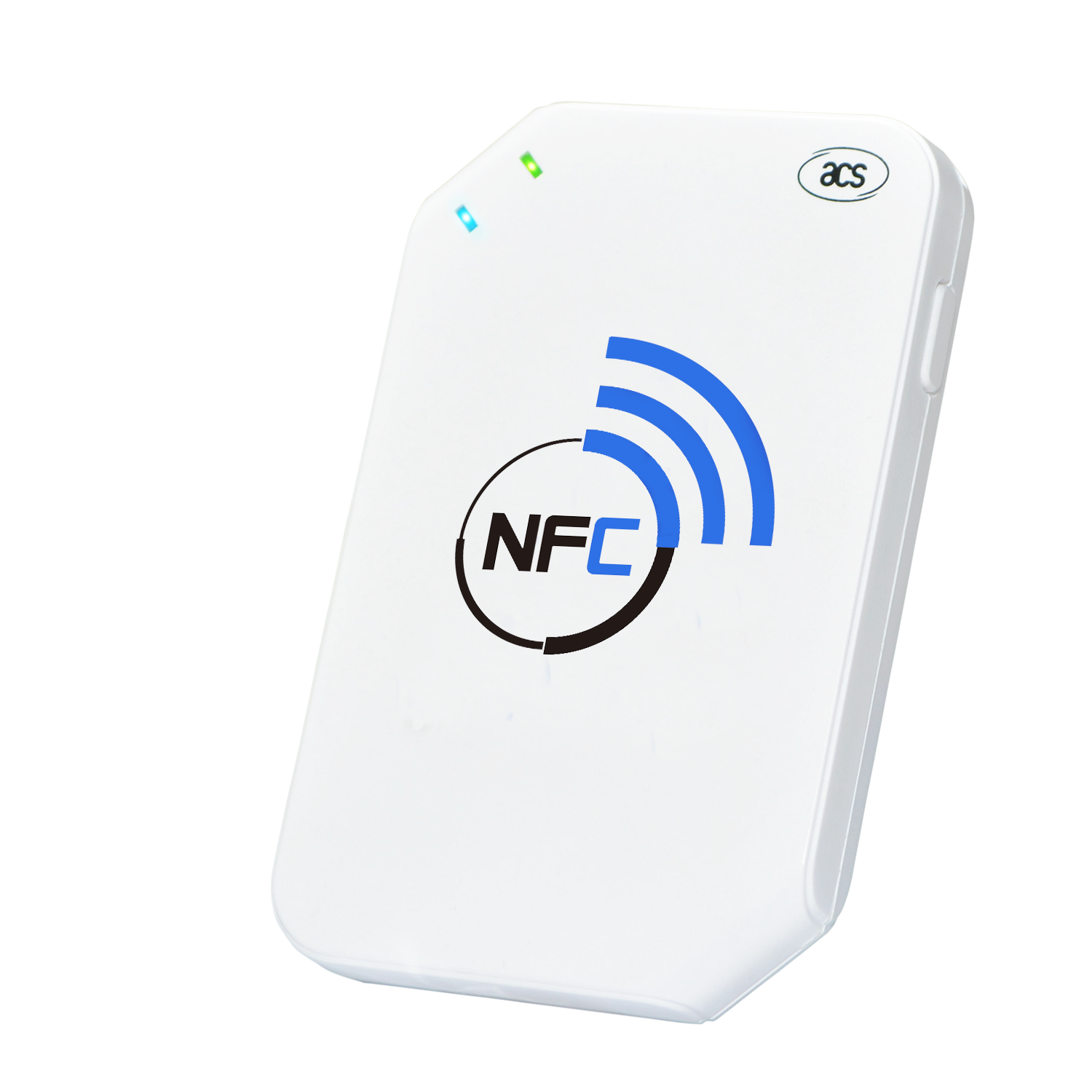

ACR1255U-J1 supports ISO 14443 Type A and B smart cards, MIFARE, FeliCa, and most NFC tags and devices compliant with ISO 18092 standard. This makes ACR1255U-J1 ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. ACR1255U-J1 has two interfaces: Bluetooth Smart (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 424 Kbps for contactless smart card and NFC device access.
With a compact design and a rechargeable Lithium-ion battery for power, ACR1255U-J1 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.
To save valuable cost and time, the firmware of ACR1255U-J1 could conveniently be upgraded on the field. This enables users to cope with the fast-changing technology for their applications, and suit different scenarios.
With Bluetooth Smart technology and AES-128 encryption, ACR1255U-J1 connects securely and wirelessly to any device running on Android 4.3 and later, iOS 5.0 and later, Windows 7 and later, and Mac OS 10.7 and later.
For PC-linked operation, ACR1255U-J1 could easily be installed for use with any personal computer running on Windows operating system because it is PC/SC and CCID-compliant. Its drivers are also compatible with Linux and Mac OS.
With its numerous features, the ACR1255U-J1 is the perfect reader for your smart card solution.
Features:
- Bluetooth® Interface
- USB Full Speed Interface
- Power Source:
- Battery-Powered (incorporates a Litium-ion battery rechargeable through USB Mini-B port)
- USB-Powered (through PC-linked mode)
- CCID Compliance
- Smart Card Reader:
- Contactless Interface:
- Read/write speed up to 424 kbps
- Built-in Antenna for contactless tag access, with card reading distance of up to 60 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- NFC Support
- Card Reader/Writer Mode
- Built-in Peripherals:
- Two user-controllable bi-color LEDs
- User-controllable buzzer
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- USB Firmware Upgradeability
- Supports Android™ 4.3 and later
- Supports iOS 8.0 and later
Applications:
- e-Government
- Banking & Payment
- e-Healthcare
- Access Control
- Network Security
- Public Key Infrastructure
- e-Purse & Loyalty
Tech Specs:
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 85 mm (L) x 54 mm (W) x 10 mm (H) |
| Weight (g) | 37.5 g (74.1 g with cable ± 5 g tolerance) |
| Bluetooth Interface | |
| Protocol | Bluetooth®(Bluetooth 4.0) |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | 1 Mbps |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Mini-B |
| Power Source | From USB Port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1 m, Detachable |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE Classic Card, T=CL ISO 18092, NFC Tags FeliCa |
| Built-in Peripherals | |
| LED | 2 Bi-colors: Red and Blue, Red and Green |
| Buzzer | Monotone |
| Other Features | |
| Encryption | In-device AES encryption algorithm |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 18092 ISO 14443 USB Full Speed Bluetooth® PC/SC CCID CE FCC RoHS REACH VCCI (Japan) BIS (India) Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® 10.7 and later Android™ 4.3 and later iOS 8.0 and later |
Mobile App:
Android
iOS
