Description

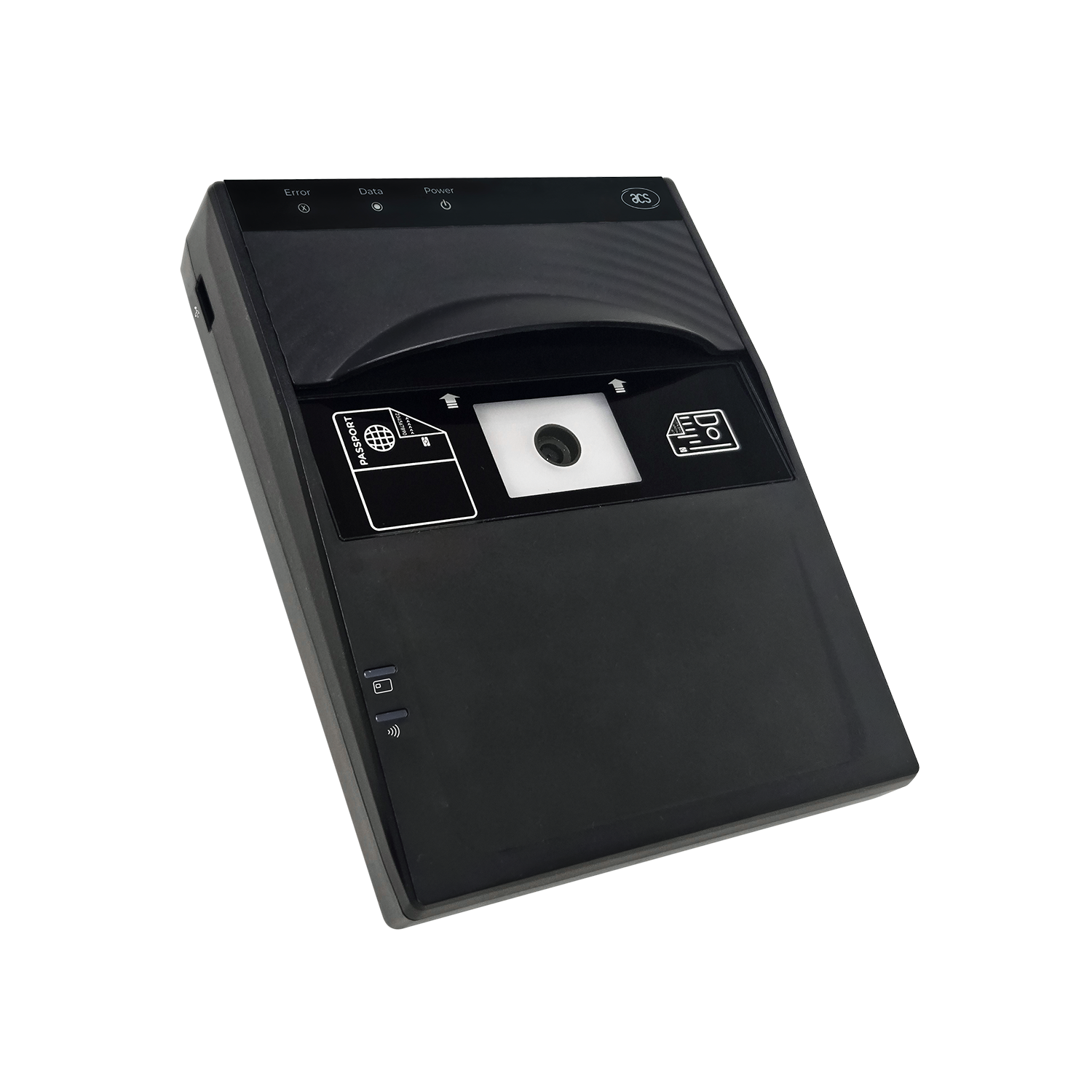

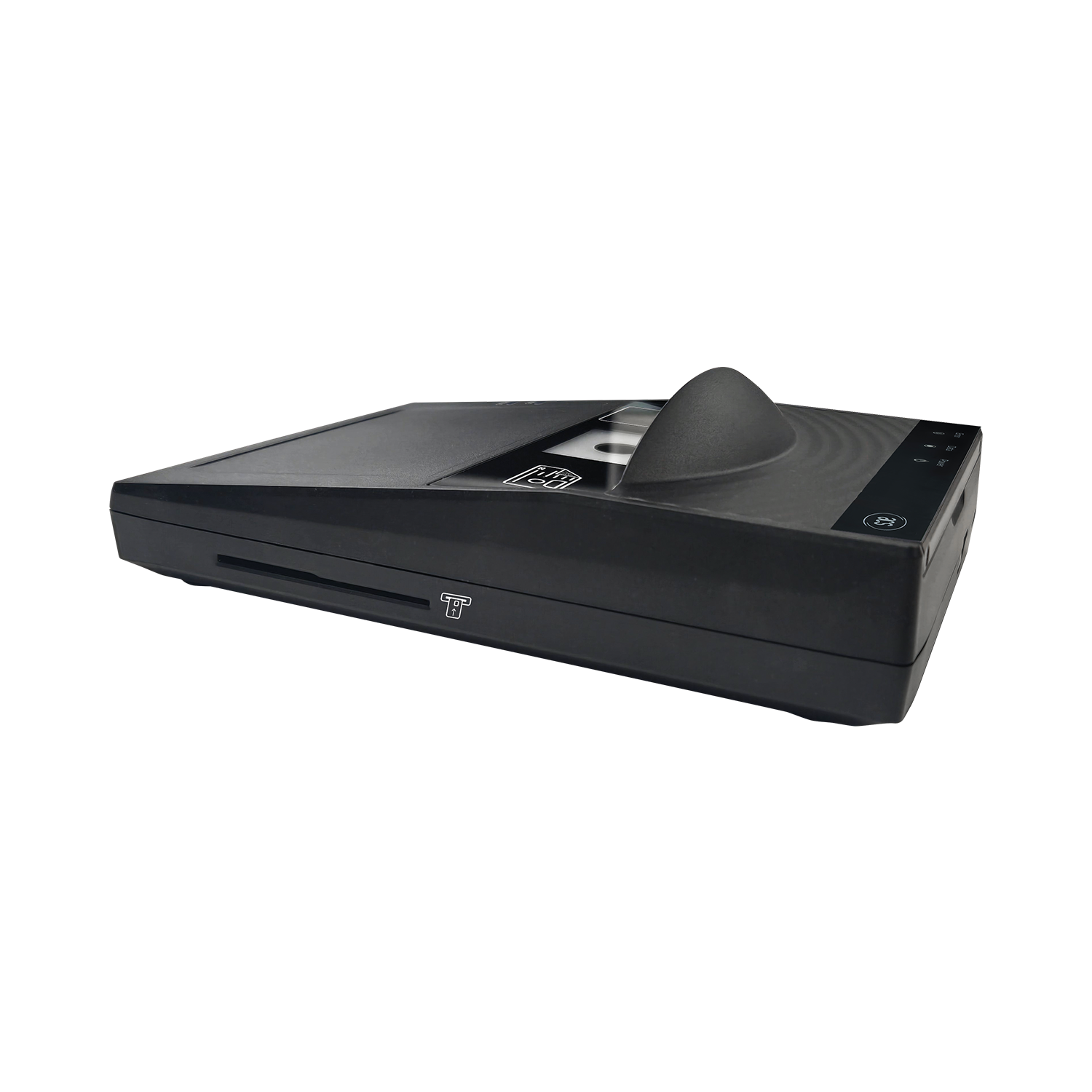

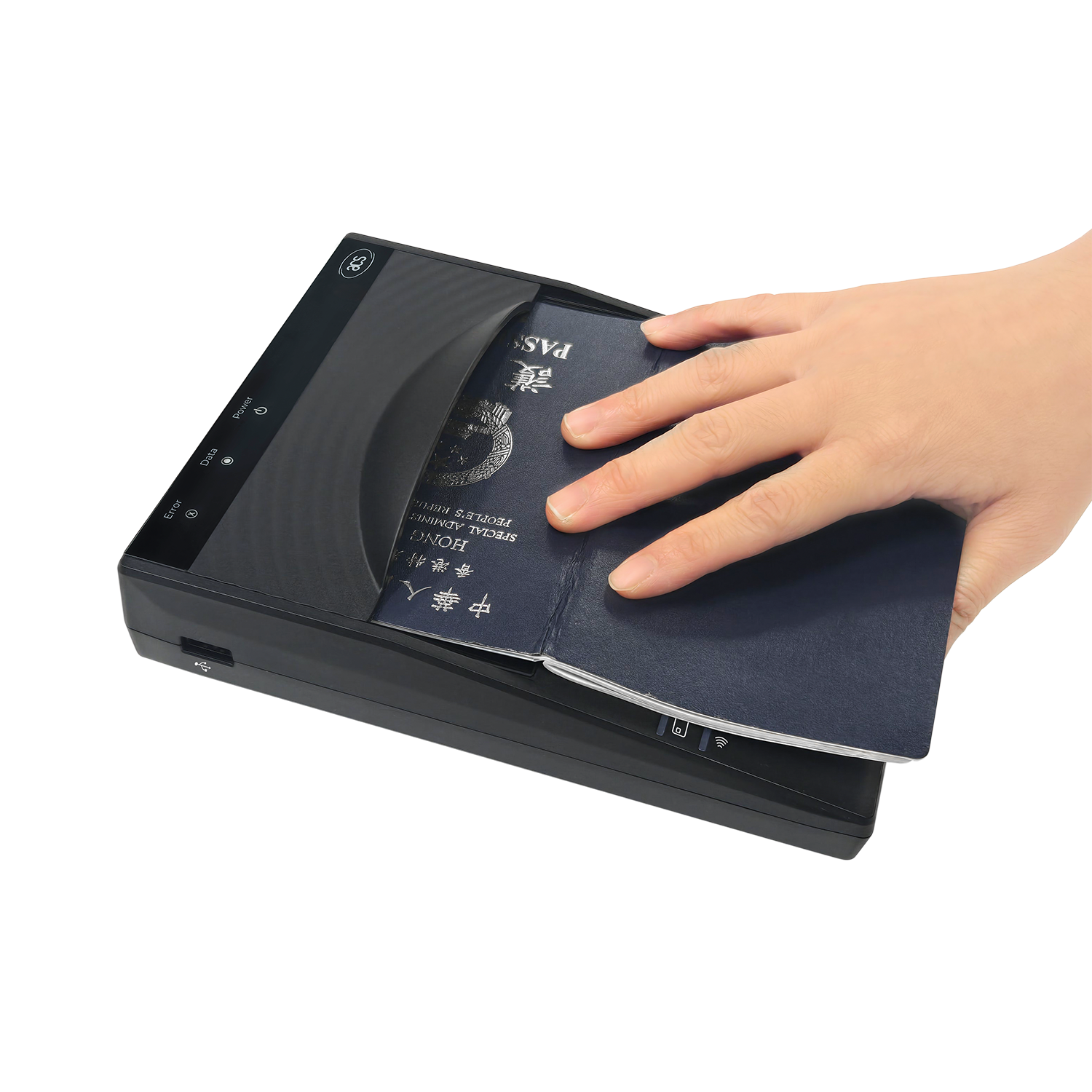

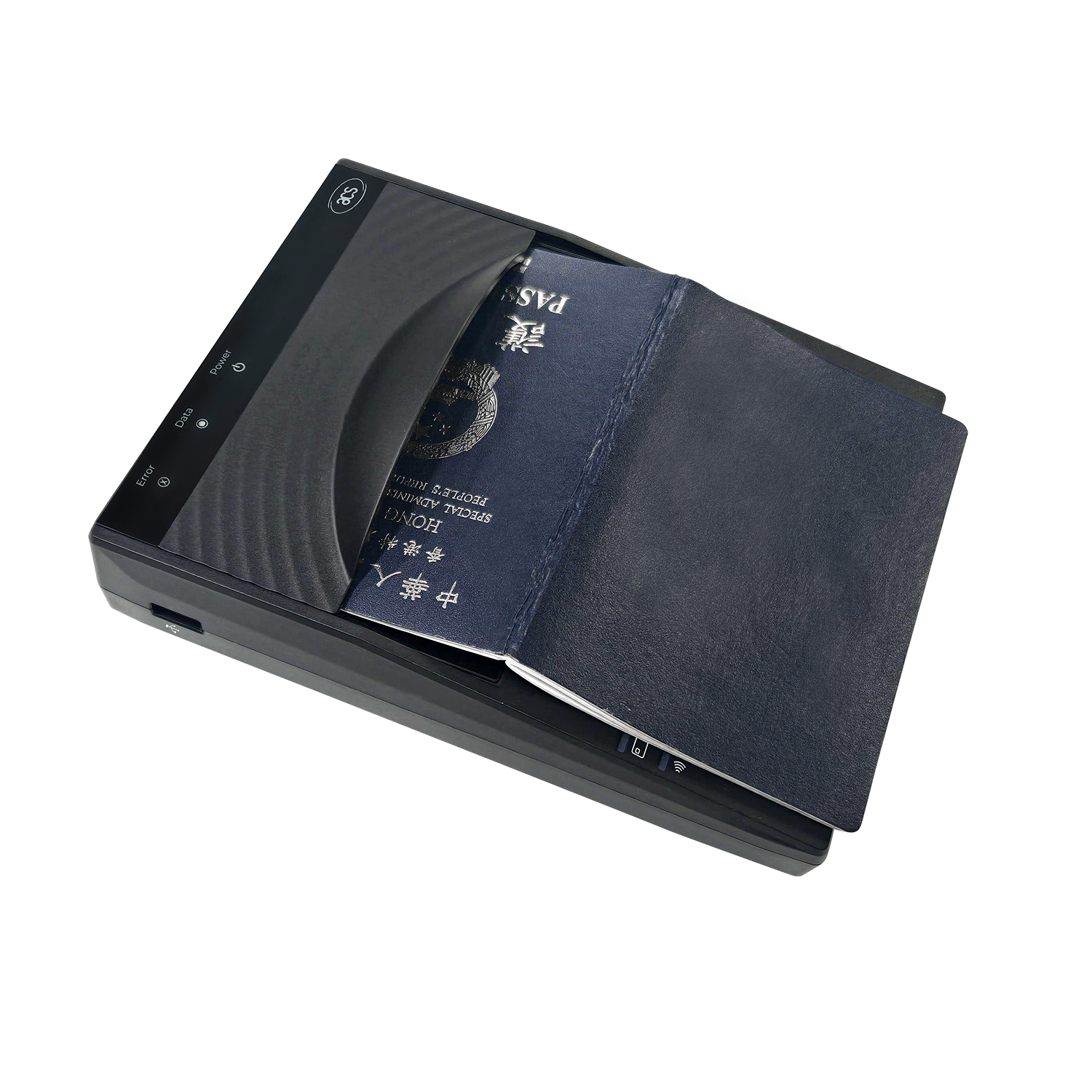

AIR60U-A2 ePassport Reader feautres:
- USB 2.0 Full Speed Interface
- Multi-Mode Identity Capture
o Combines OCR, RFID, contact card, and QR code technologies
o Fully compliant with ICAO DOC 9303 standards for e-passports and ID cards - Identity Verification Technologies
o MRZ Reading achieves an OCR performance of ≤1 second with 99.8% accuracy
o E-passport Reading complies with ICAO 9303 and reads chip data in ≤3 seconds - Contactless Smart Card Reader
o Read/Write ISO 14443A/B speed of up to 848 kbps
o Clock frequency up to 13.56MHz
o Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
o Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO 18092 NFC
o Supports MIFARE® (T=CL), FeliCa, NFC tags - Contact Smart Card Reader
o Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V) speed of up to 1,250 kbps
o Supports microprocessor cards with T=0 or T=1 protocol
o ISO 7816-compliant SAM slot (Class A) - Application Programming Interface:
o Supports PC/SC - Built-in Peripherals
o 5 x LED(s)
o Buzzer - USB Firmware Upgradability
- Support operating systems
o Windows®, Linux®
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 186.8 mm (L) × 144.6 mm (W) × 54.9 mm (H) |
| Weight (g) | 362g |
| USB Interface | |
| Current Consumption | 1A |
| Protocol | USB CCID |
| Connector Type | USB Type-C |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1 m, Detachable |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Contactless Smart Card Interface | |
| Standard | ISO 14443 Type A & B Parts 1–4, ISO 15693, MIFARE®, FeliCa, NFC, etc. |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO 15693 ISO 18092 FeliCa |
| SAM Card Interface | |
| Number of Slots | 1 x Standard SIM size slot |
| Standard | ISO 7816 Class A (5V) |
| Clock Frequency | 5 MHz, up to 10 MHz (upon request) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LED | 5 x LED |
| Buzzer | Available |
| Other Features | |
| Other Features | Smart Card Reader/Writer, Card Emulation Keyboard Emulation |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Standards: ICAO DOC 9303, USB CCID, PC/SC Regulatory/ Environmental: CE, FCC, RoHS, REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux® |
