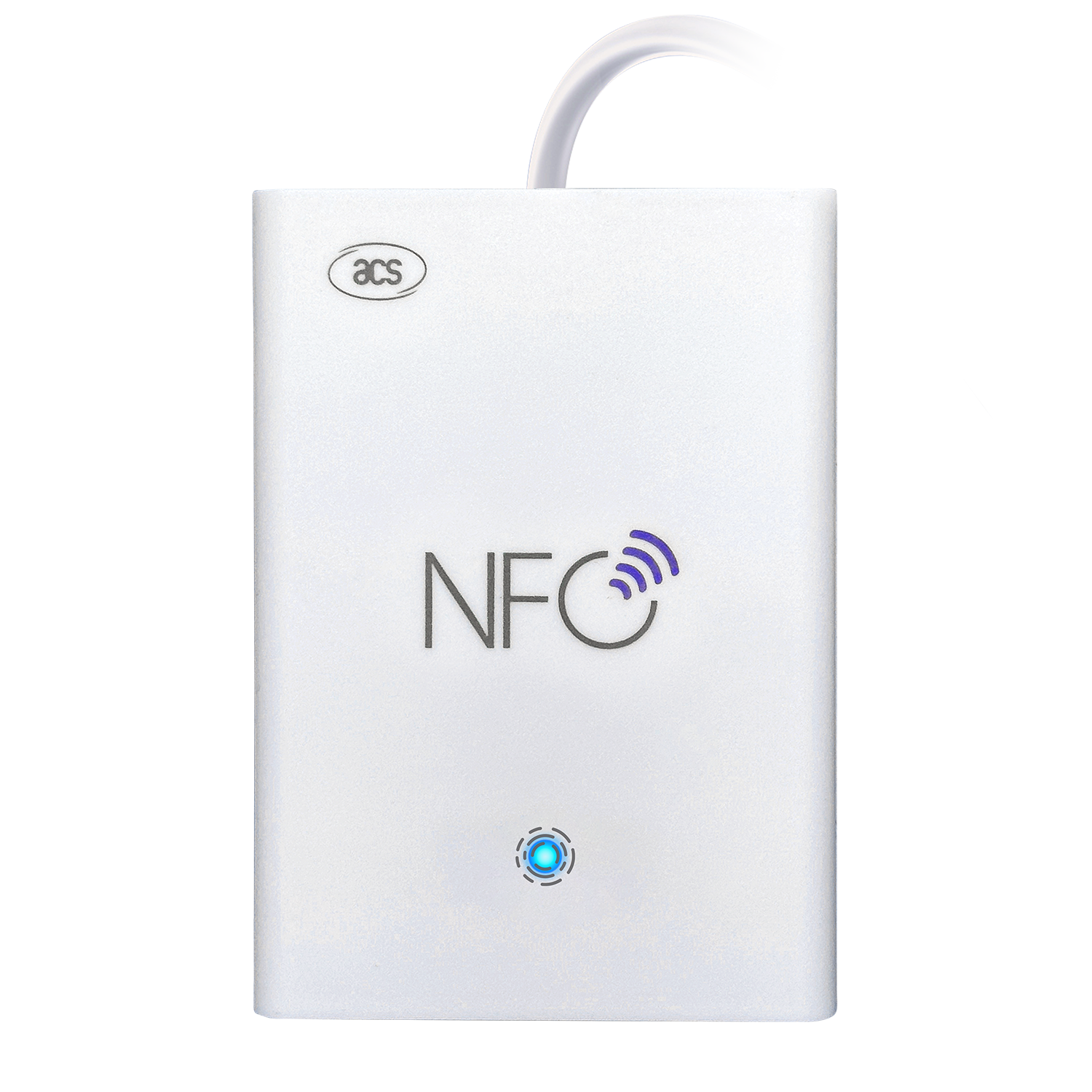

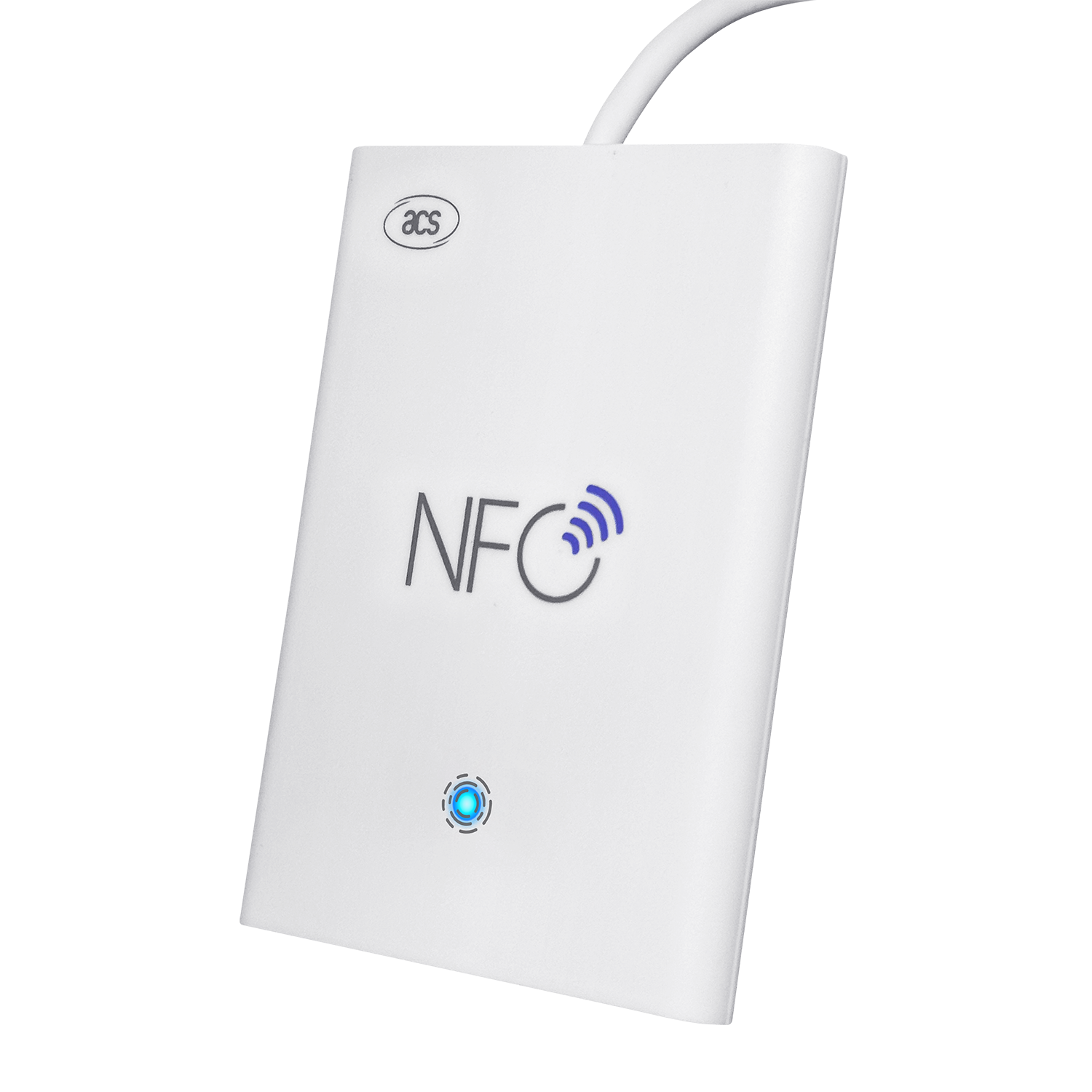

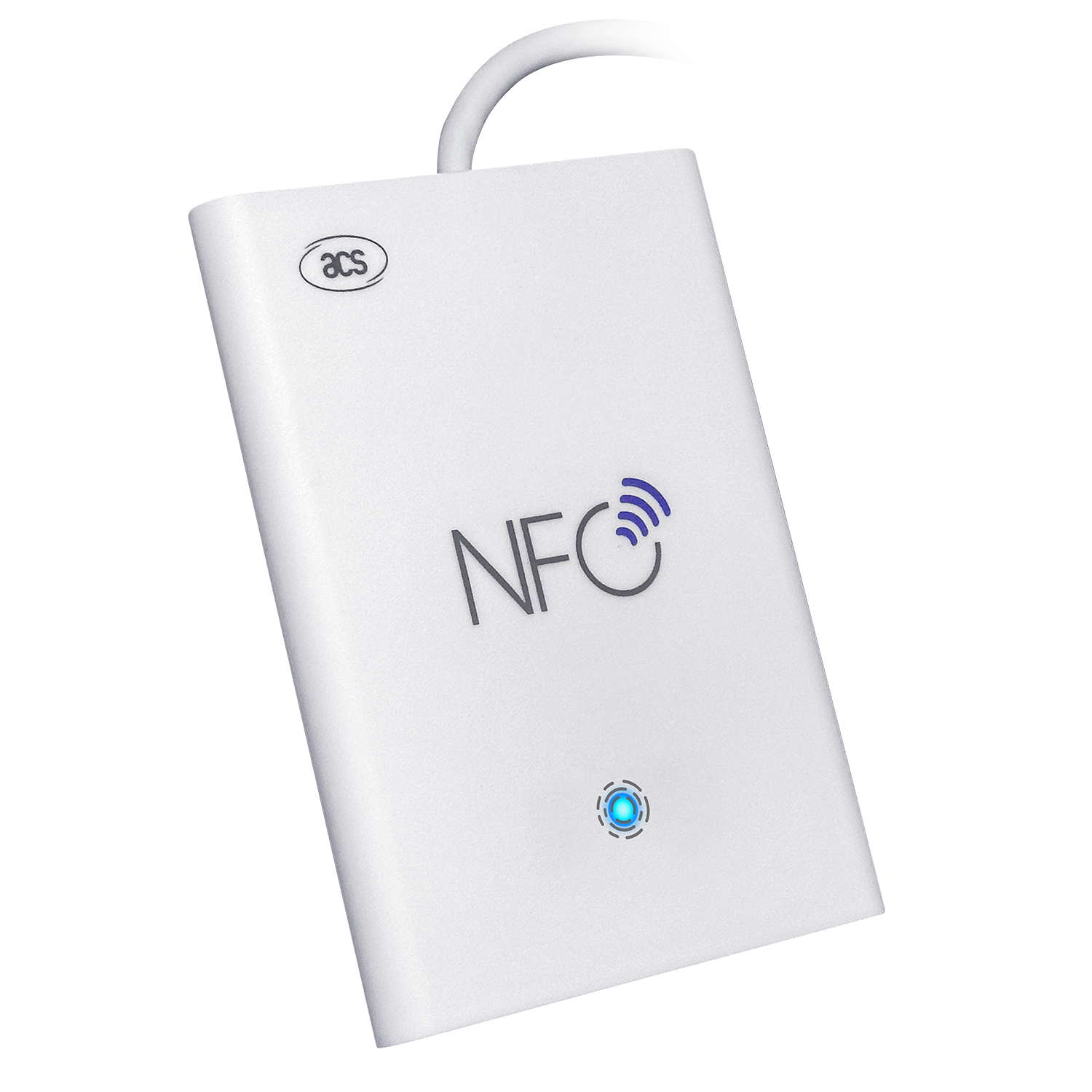

The AquaGuard USB NFC Reader is a robust fourth-generation device built on 13.56 MHz contactless technology. It operates with contactless cards and devices adhering to ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards. The IP67 rating signifies its exceptional resistance to dust and water, ensuring uninterrupted operation even under challenging conditions. Making it versatile and cost-effective hardware for various industries, such as finance, healthcare, outdoor, and government.

Category: Tags: , , , Brand:

Description

AquaGuard IP67 USB NFC Reader features:

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader:
    ◦ Read/Write speed up to 848 kbps
    ◦ Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
    ◦ Supports ISO 14443 Type A and B cards, ISO 15693 Cards  and ISO18092 NFC
    ◦ Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
    ◦ Built-in anti-collision feature
    ◦ Supports extended APDU (max. 64 kbytes)
  • Support various NFC modes:
    ◦ Smart Card Reader/Writer Mode
    ◦ Card Emulation Mode
    ◦ Keyboard Emulation Mode
  • Application Programming Interface:
    ◦ Supports PC/SC
    ◦ Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
    ◦ User-controllable RGB-color LED (Blue & Green&Red)
    ◦ User-controllable buzzer (Monotone)
  • USB Firmware Upgradability
Physical Characteristics
Dimensions (mm) Main Body: 85.0 mm (L) x 60.0 mm (W) x 9.0 mm (H)

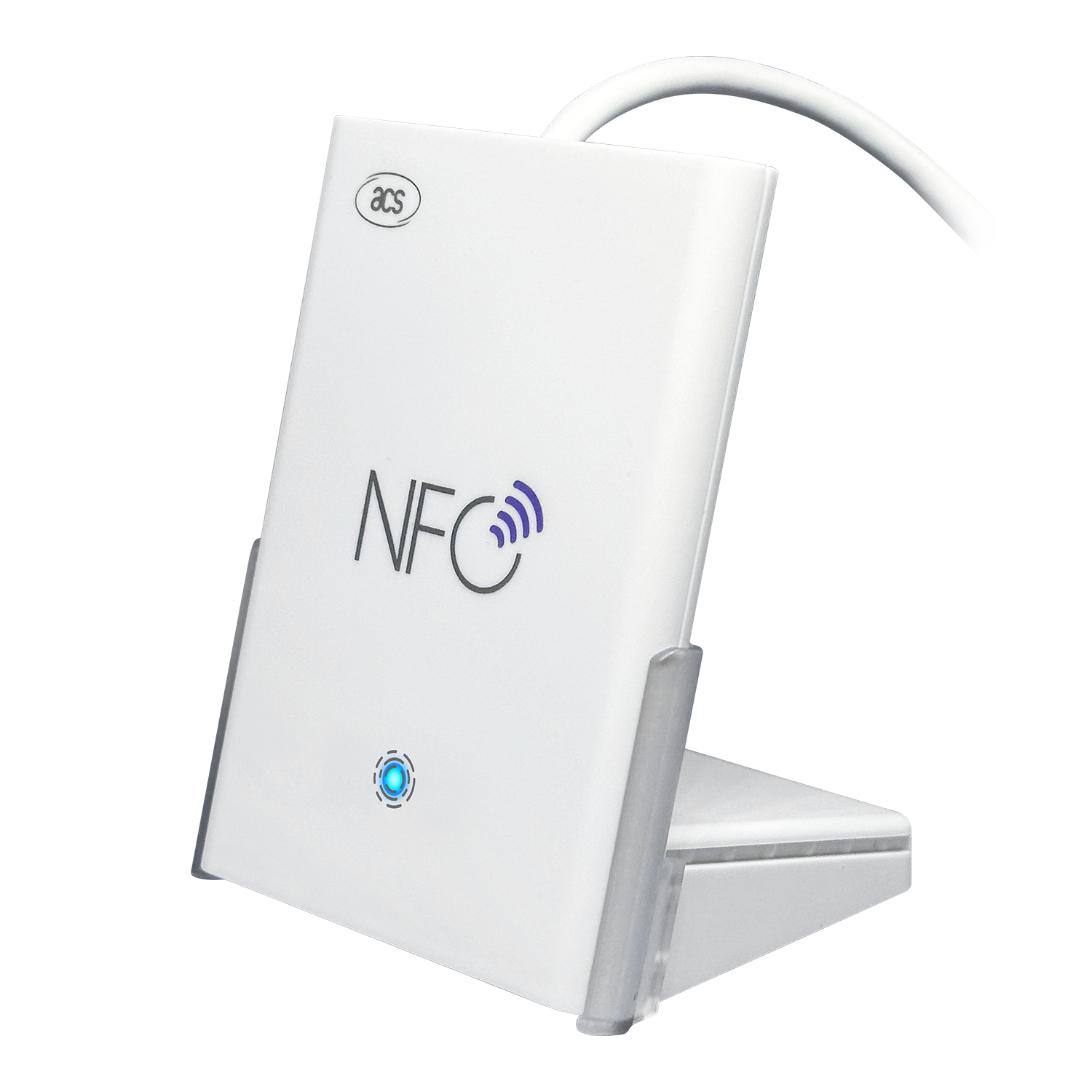

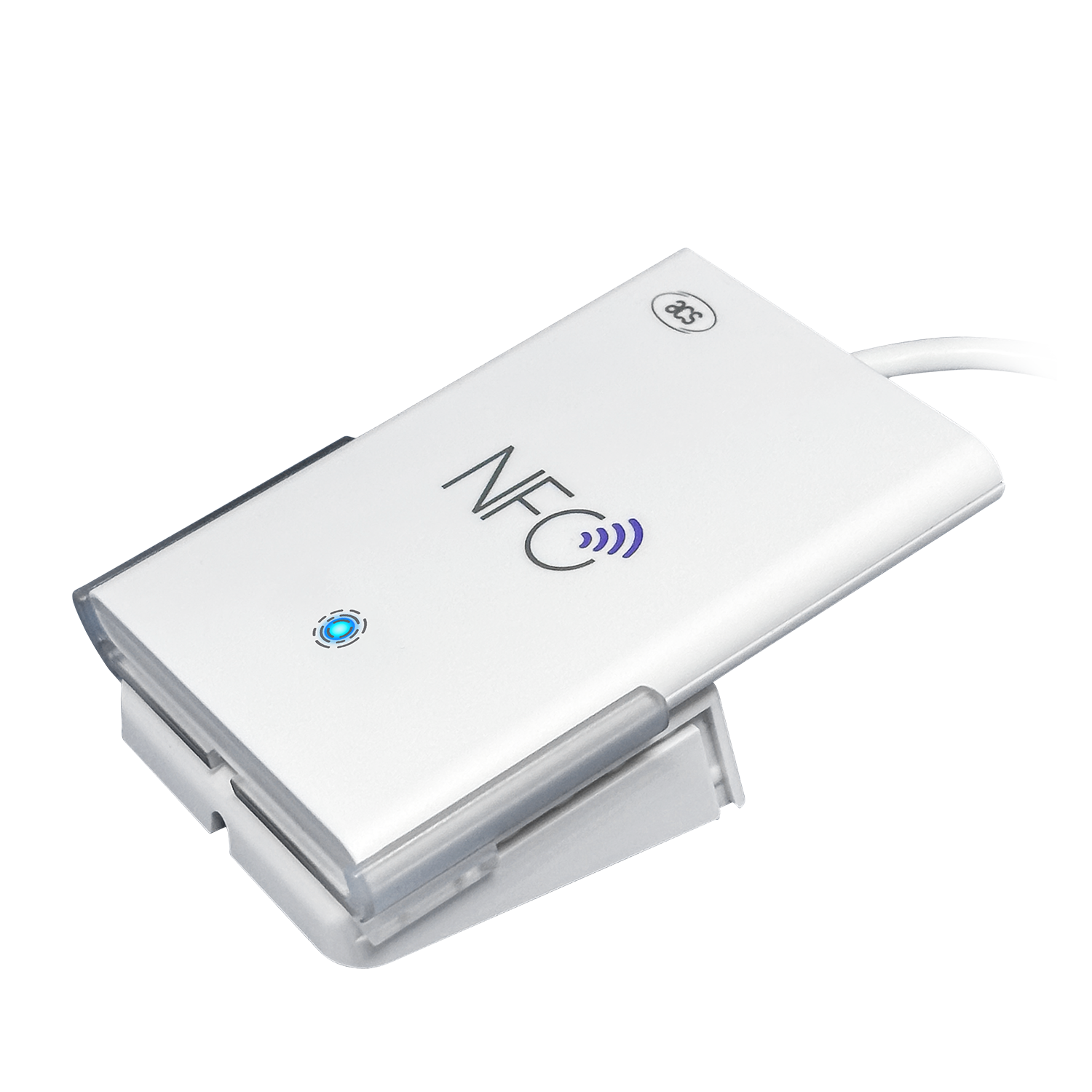

With Optional Stand: 86.6 mm (L) x 62.6 mm (W) x 62.4 mm (H)
Weight (g) Standard: 67.0 g ± 5.0 g
With Optional Stand: 88.0 g ± 5.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A
Speed USB 2.0 Full Speed (12 Mbps) Compatible with USB 3.0
Cable Length 1m, Non-detachable
Contact Smart Card Interface
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO 15693   ISO 18092 NFC Tags FeliCa
Built-in Peripherals
LED 1 RGB-color: Blue and Green, Red
Buzzer Yes
Other Features
Other Features Supported Card Type:

  • ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC,
    MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card

NFC Features:

  • Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Standard:

  • USB CCID, PC/SC, Microsoft® WHQL, J-LIS, IP67

Regulatory / Environmental

  • CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Android™
