ACR38U-H1

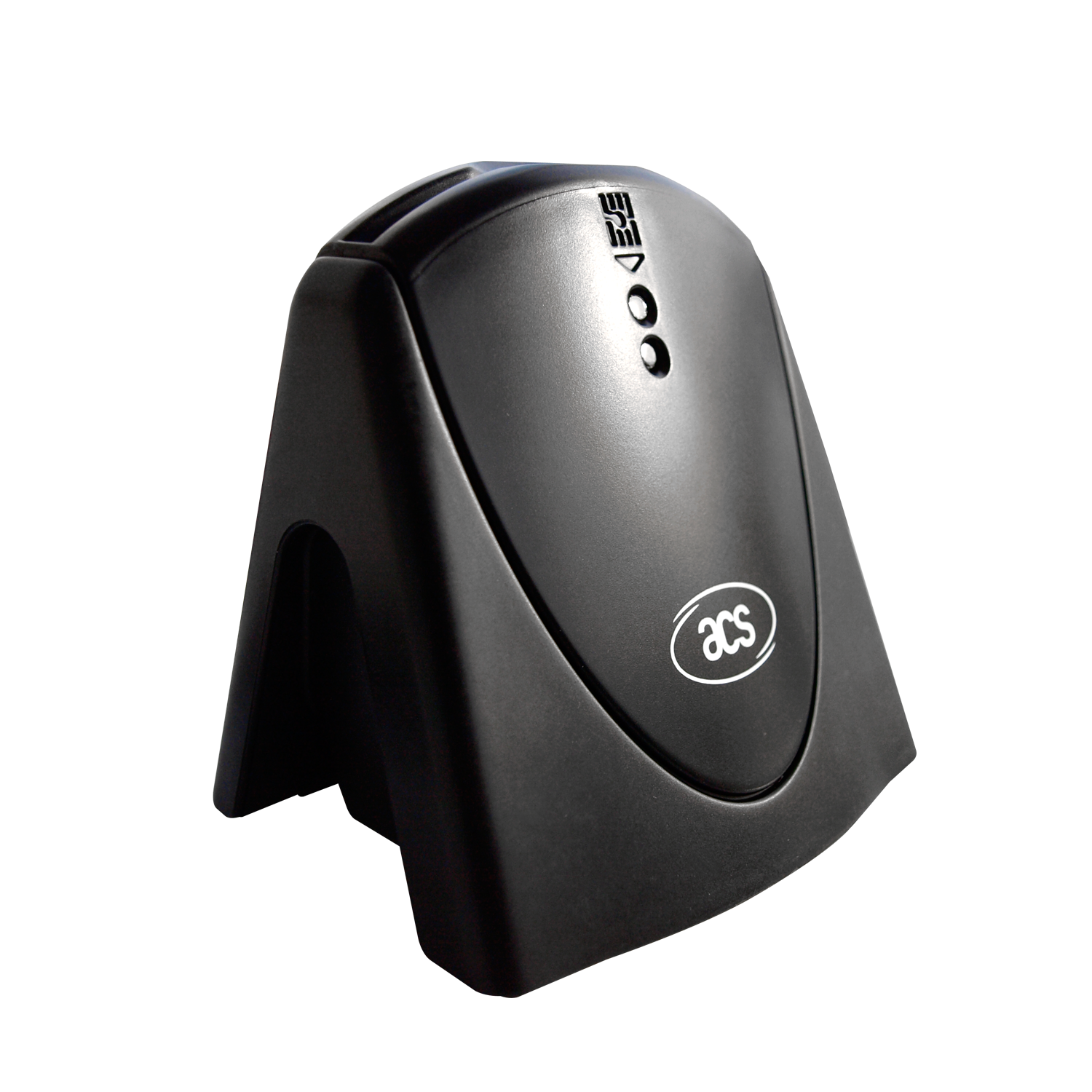

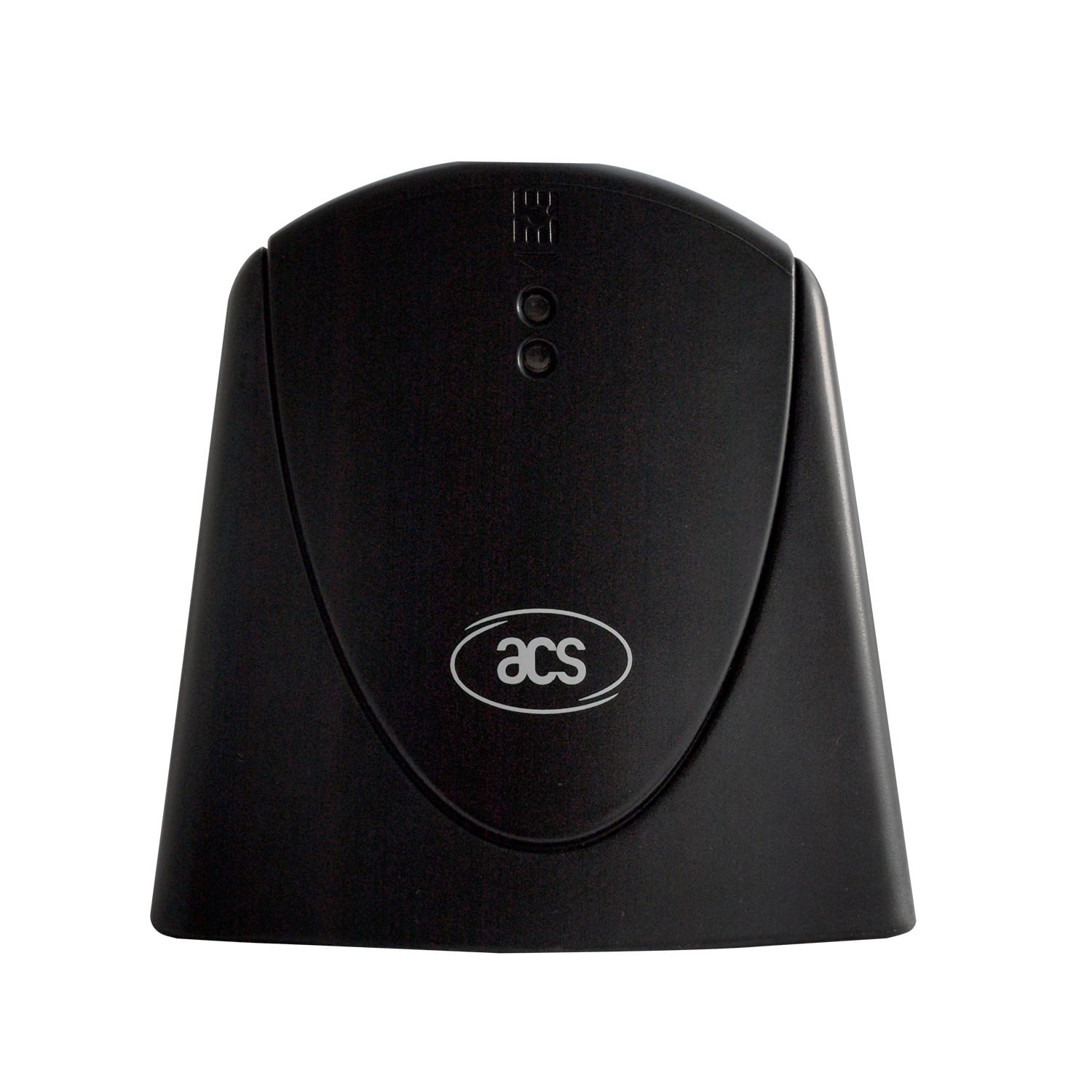

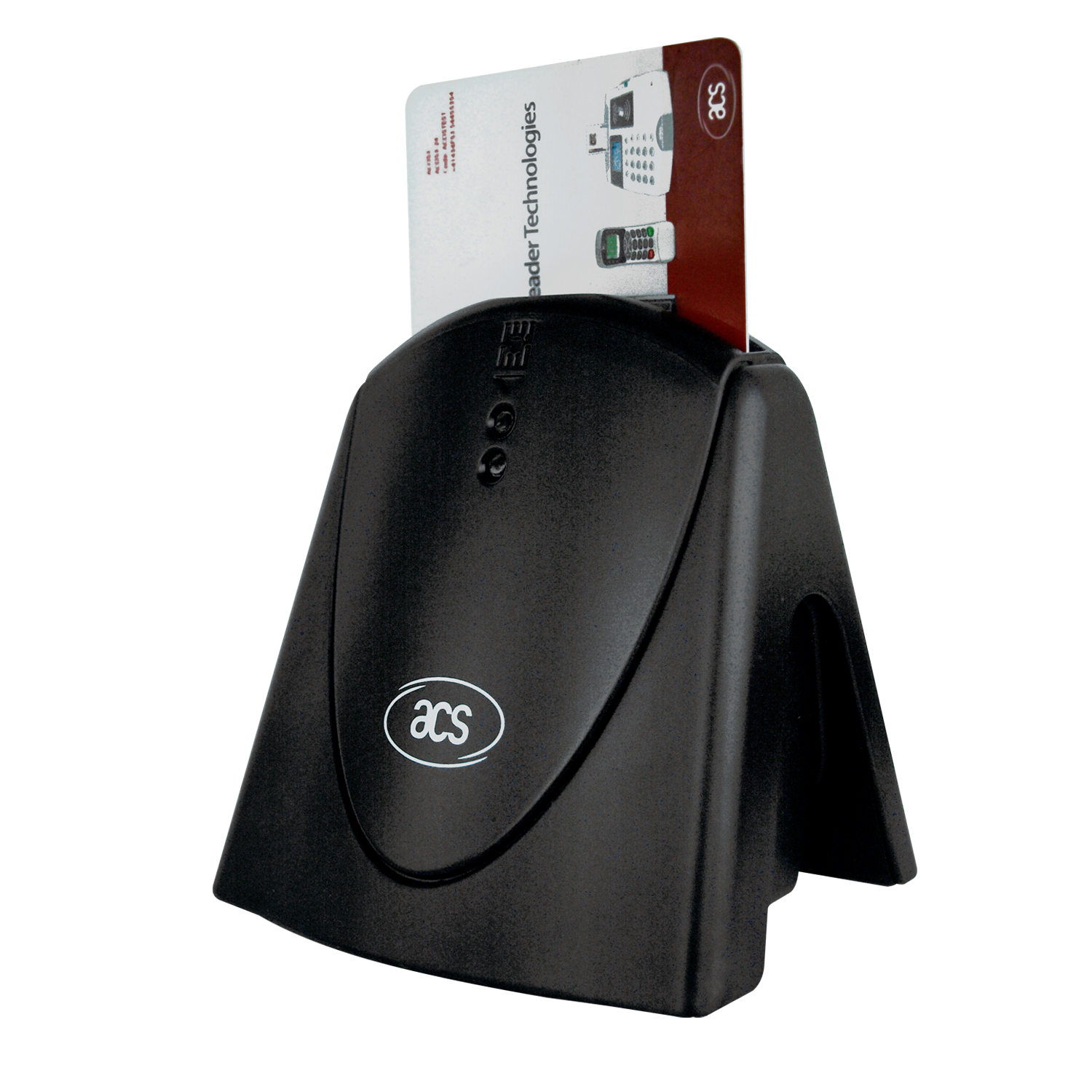

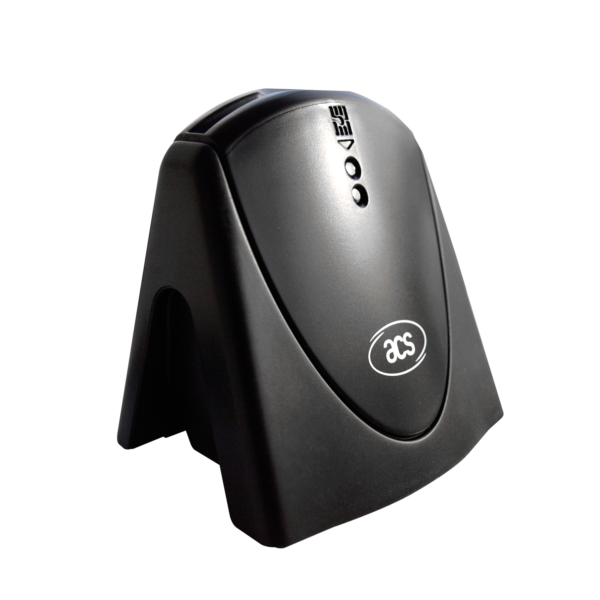

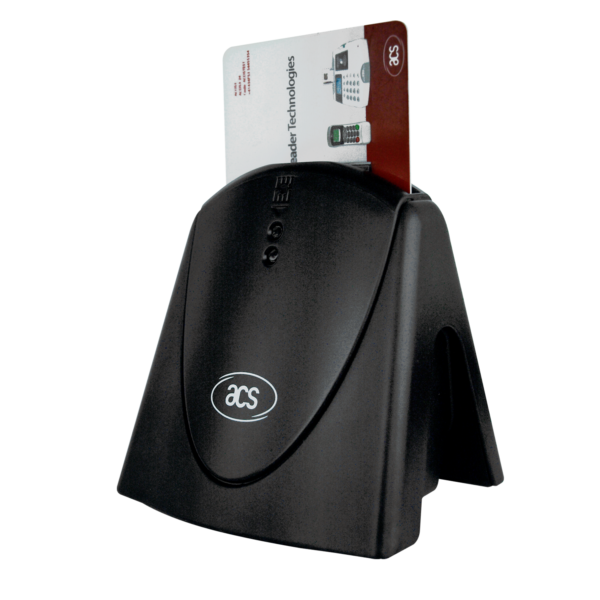

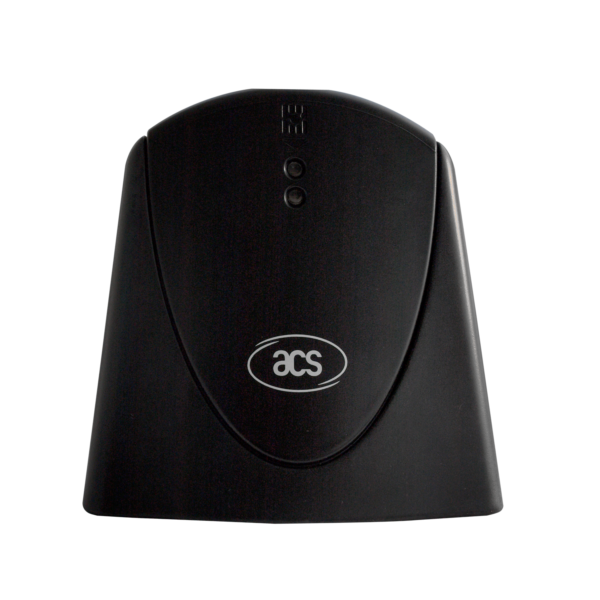

Built with the unique “Bridge Desktop” casing, ACR38U-H1 allows for upright insertion of smart cards. It belongs to the ACR38 family of high-speed smart card readers/writers, which has been proven to support highly demanding smart card applications. Low-cost but high-quality, the ACR38U-H1 creates lasting customer value and offers viable and user-friendly solutions for various smart card applications.

Description

Built with the unique “Bridge Desktop” casing, ACR38U-H1 allows for upright insertion of smart cards. It belongs to the ACR38 family of high-speed smart card readers/writers, which has been proven to support highly demanding smart card applications. Low-cost but high-quality, the ACR38U-H1 creates lasting customer value and offers viable and user-friendly solutions for various smart card applications.

Housing the ACR38 core, ACR38U-H1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V), microprocessor cards with the T=0, and T=1 protocols. In addition, it supports a wide variety of memory cards in the market, including the Department of Defense Common Access Card (CAC). This makes it ideal for a broad range of solutions, such as PIV Application, Physical and Logical Access Control, Digital Signature and Online Banking.

ACR38U-H1 is easy to install, use, and integrate in a computer-based environment. It is PC/SC and CCID compliant, and its drivers are compatible with Windows®, Linux® and Mac OS®. In addition, ACR38U-H1 may now be used on mobile devices running the Android™ platform with versions 3.1 and above.

With its various features, ACR38U-H1 can be used in numerous operations for e-Banking and e-Payment, Access Control, Transportation, and e-Government applications.



Features:

  • Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) card
  • Supports CAC (Common Access Card)
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards:
    • Cards following the I2C bus protocol (free memory cards), including:
      • Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
      • SGS-Thomson: ST14C02C, ST14C04C
      • Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
    • Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
    • Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
    • Cards with ‘104’ type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
    • Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
    • Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
    • Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)



Applications:

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • Network Security
  • Public Key Infrastructure
  • e-Purse & Loyalty



Tech Specs:

Dimensions 71.5mm (L) x 80.0mm (W) x 80.0mm (H)
Interface USB 2.0 Full Speed
Supply Voltage Regulated 5V DC
Supply Current Max. 50mA
Operating Temperature 0-60°C
CLK Frequency 4 MHz
Smart Card Interface Support
  • ISO-7816 Class A, B and C ( 5V, 3V, 1.8V )
  • CAC & PIV Smart Cards
Compliance / Certifications
  • EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE. RoHS 2, REACH, FIPS 201 (USA), TAA (USA),VCCI (Japan), KC (Korea)
  • Microsoft® WHQL
Operating System Support
  • Windows®
  • Linux®
  • Mac OS®
  • Android™
  • Solaris
