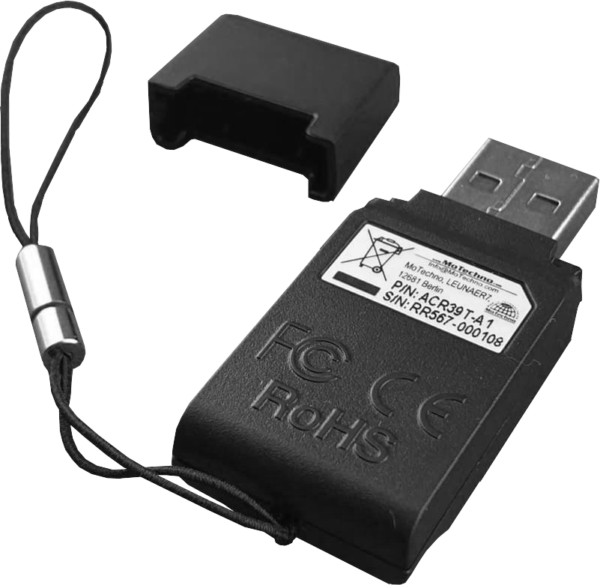

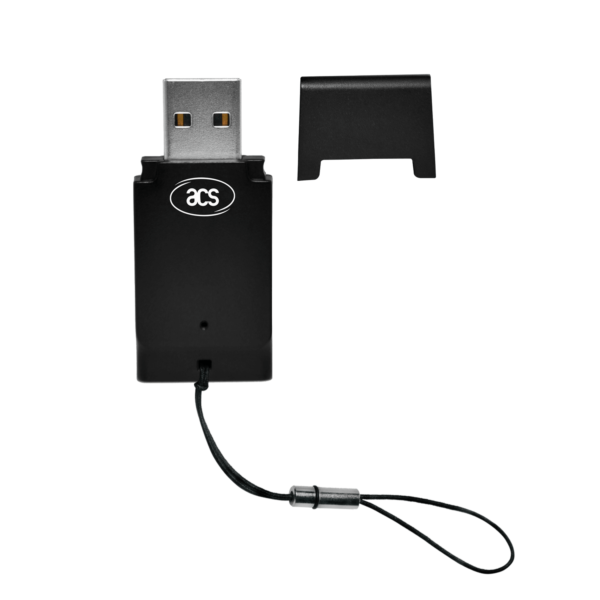

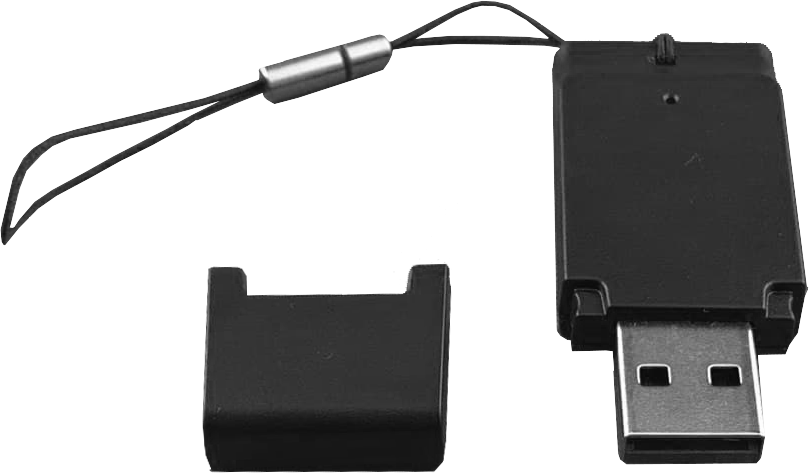

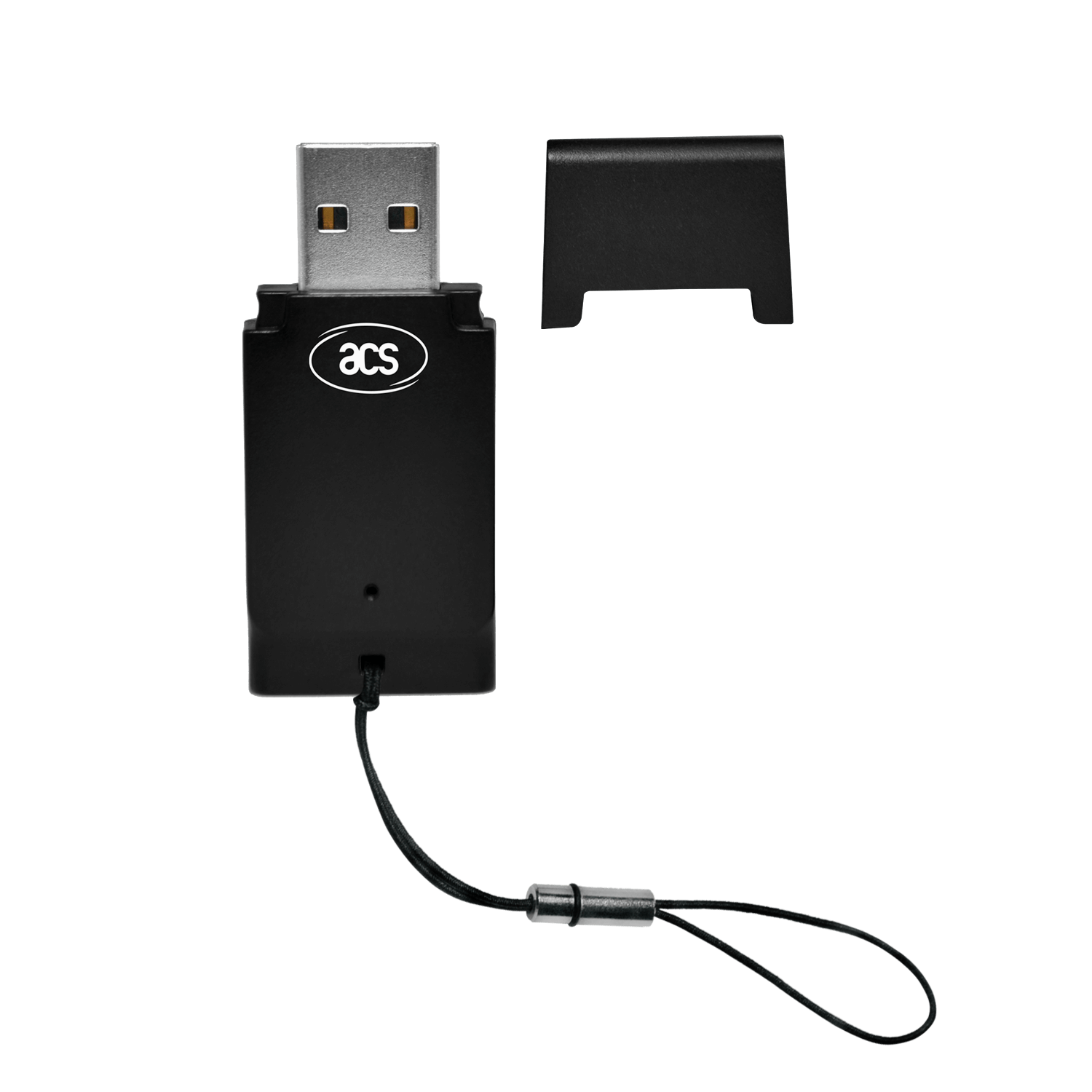

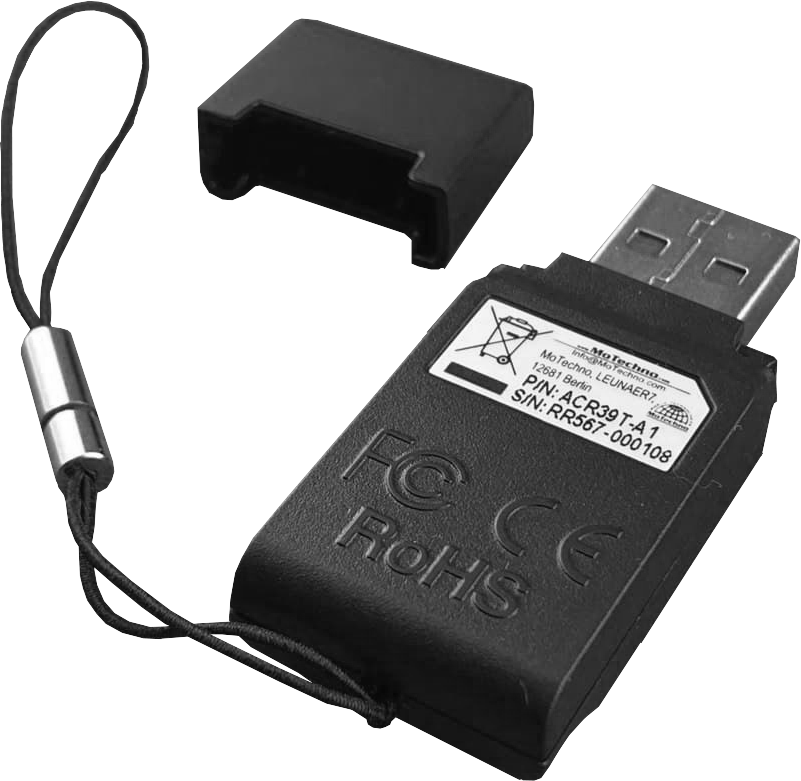

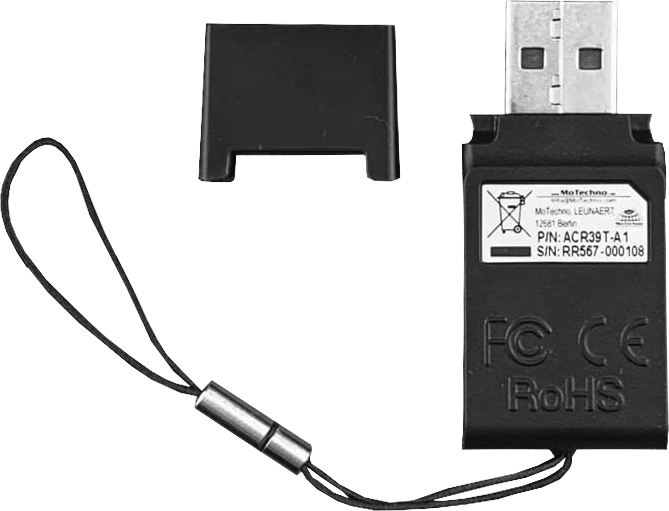

ACR39T-A1

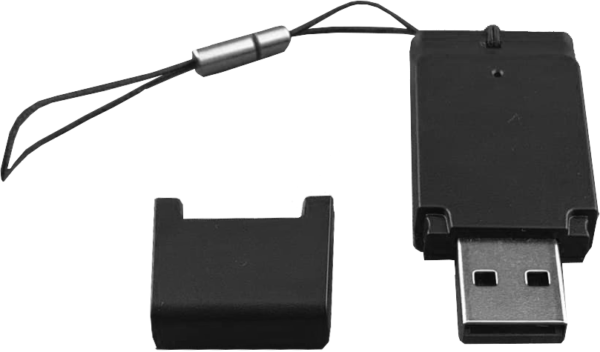

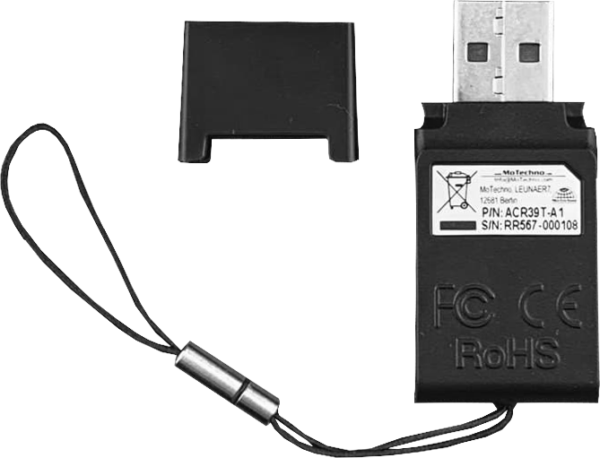

ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

Description

ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

ACR39T-A1 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Linux, and Mac OS®. Additionally, ACR39T-A1 may also be used on mobile devices running on Android™ platform versions 3.1 and above.

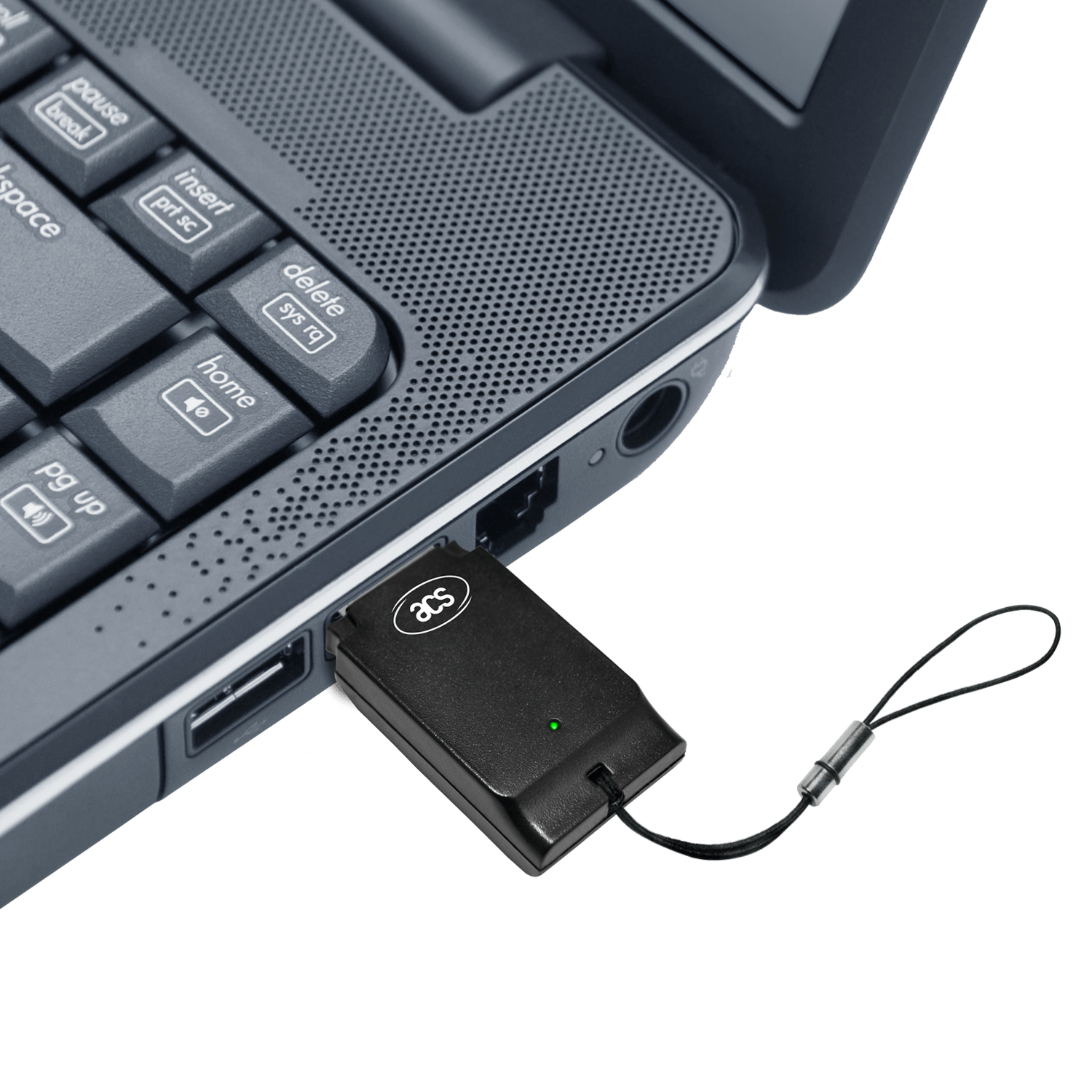

Weighing nothing more than your standard USB stick, ACR39T-A1 is a device that you can bring anywhere to keep smart card technology right at your fingertips.



Features:

  • Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards such as:
    • Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
      • Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024
      • SGS-Thomson: ST14C02C, ST14C04C
      • Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
    • Cards with intelligent 1k bytes EEPROM with write-protect function, including:
      • Infineon: SLE4418, SLE4428, SLE5518 and SLE5528
    • Cards with intelligent 256 bytes EEPROM with write-protect function, including:
      • Infineon: SLE4432, SLE4442, SLE5532 and SLE5542
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)



Applications:

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • Network Security
  • Public Key Infrastructure
  • e-Purse & Loyalty



Tech Specs:

Physical Characteristics
Dimensions (mm) 49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H)
Weight (g) 8.5 g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Contact Smart Card Interface

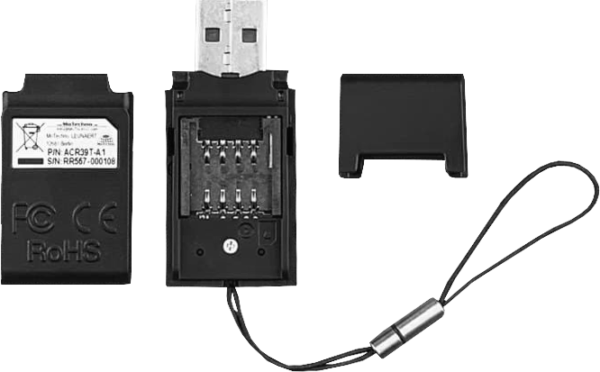

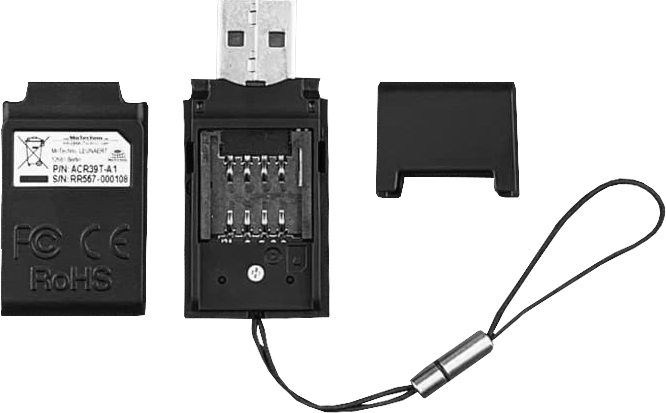

Number of Slots 1 Standard SIM-Sized Card Slot
Standard ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950
ISO 7816
USB Full Speed
PC/SC
CCID
VCCI (Japan)
Microsoft® WHQL
CE
FCC
WEEE
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows®
Linux®
MAC OS®
Solaris
Android™

Additional information

Weight 8,5 g
Dimensions 49,5 × 21,5 × 9 mm
