Description

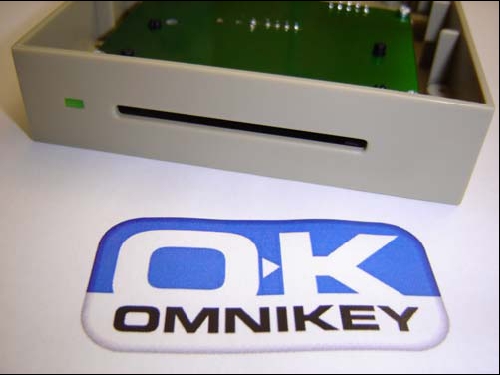

It is a robust smart card reader to integrate into desktop or tower PCs via 3,5” floppy slot and it is easy to connect via internal USB-connector or external USB-port. The reader includes digital signature, secure online banking and other online transactions, loyalty programs, healthcare solutions and many more future applications.
The Omnikey 3921 complies with all relevant industry standards such as ISO 7816, EMV (Europay, MasterCard, Visa) 2000, Microsoft® WHQL, USB CCID, PC/SC, HBCI (Home Banking Computer Interface) and many more. It is open for almost any smart card for any application on any computer. The usage within an application is based on standardized interfaces like PC/SC (ready for 2.0), OCF (Open Card Framework) or CT-API.
Technical Specifications
- Host Interface
- USB 2.0 CCID1 (also compliant with USB 1.1)
- Transmission speed 12 Mbps
- Power supply Bus powered
- Smart Card Interface
- Compliant with ISO 7816 and EMV, 2000
- Supports T=0, T=1
- Supports 2-wire: SLE 4432/42 (S=10),
- 3-wire: SLE 4418/28 (S=9), SLE 4404
- Supports I2C
- Card Size ID-1 (full size)
- High-performance smart card interface
- (up to 420 Kbps when supported by card)
- Smart card clock frequency up to 8 MHz
- Supports 5V, 3V, and 1.8V smart cards
- Supplies 60 mA current to power the smart card
- Smart card movement detection with auto power-off
- Automatic detection of smart card type
- Short circuit and thermal protection
- 8 pin handling (C4/C8 supported)
- Other features
- Status indicator Green LED
- Options
- Customer specific logo or label On request
- Customer specific colors On request
- Compliance/Certification
- Microsoft WHQL3 certified
- EMV2 2000 Level 1 certified
- ISO 7816
- HBCI4
- USB 2.0 (1.1 compatible)
- API
- PC/SC driver (ready for 2.0)
- CT-API (on top of PC/SC)
- OCF (on top of (PC/SC)
- PC /SC Driver Support (other Windows OS subject to testing):
- Windows® 98
- Windows® ME
- Windows® 2000
- Windows® XP
- Windows® CE 5.0/ CE.NET (depending on hardware)
- Windows® 64bit(AMD64, EM64T, IA64)
- Linux®
- Mac® OS X
- Embedded Technology
- CardMan Smart@Link Chip set
- Hardware Specifications
- Color Computer black
- Dimensions (LxBxH) 125 x 100 x 25mm
- 4.92” x 3.94” x 0.98”
- Weight 85 gr/2.99 ounces
- Operating temperature 10-55°C/ 32-131°F
- Operating humidity 10-90% rH
- Composition ABS
- Connector cable 80 cm / 31.5”
- Durability 100,000
- Insertions
- Meantime between failure (MTBF) 500,000 Hours
- Safety and Environmental Standards
- CE
- FCC In preparation
- UL In preparation
- VCCI In Preparation
- MIC In Preparation
