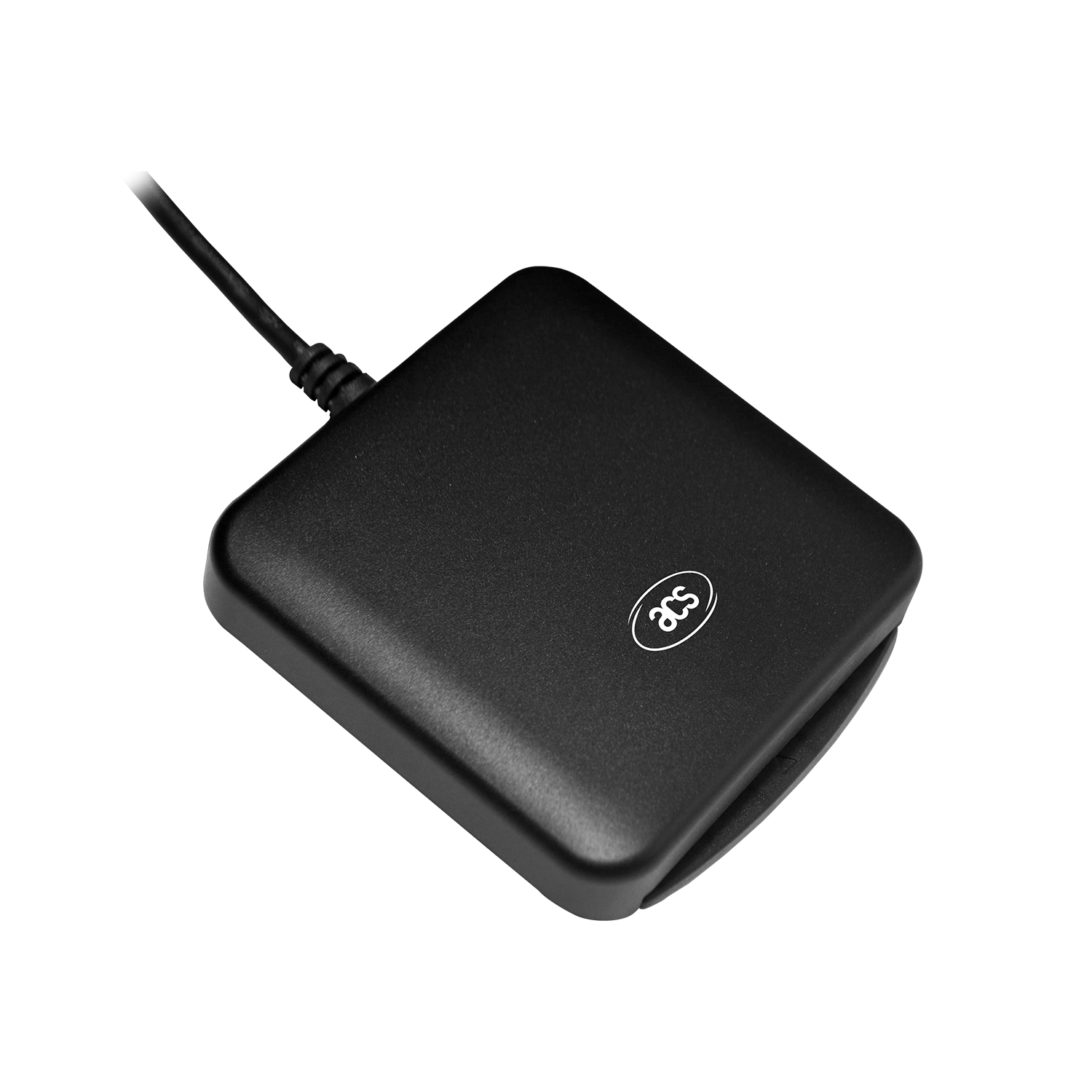

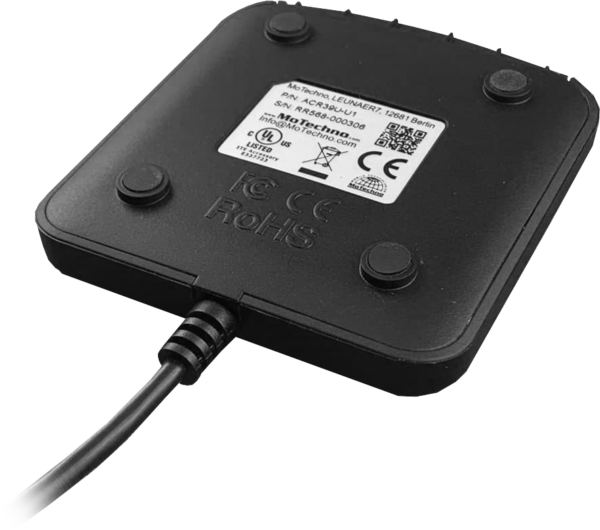

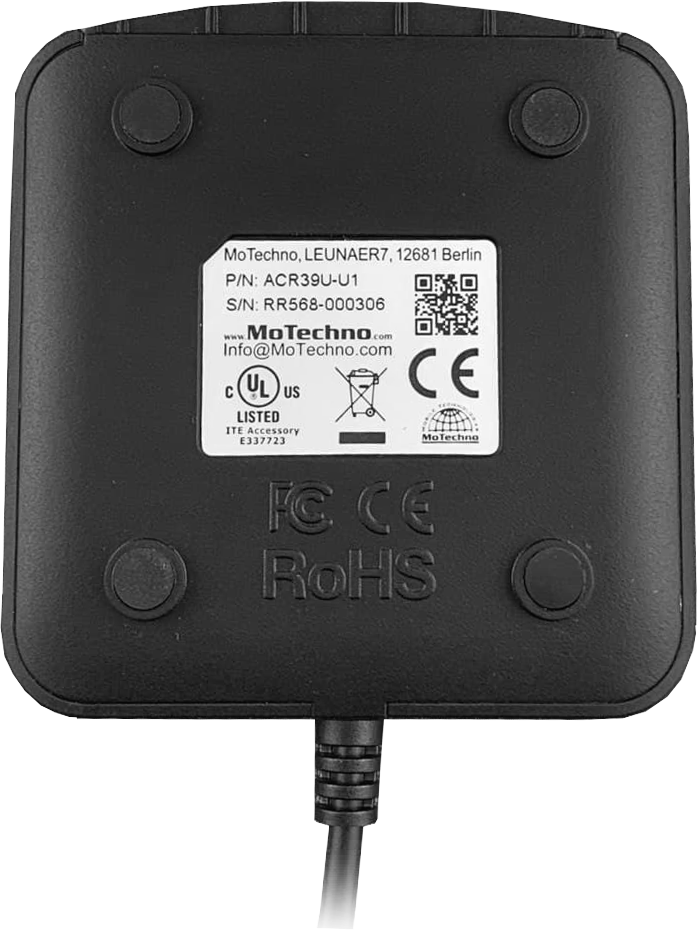

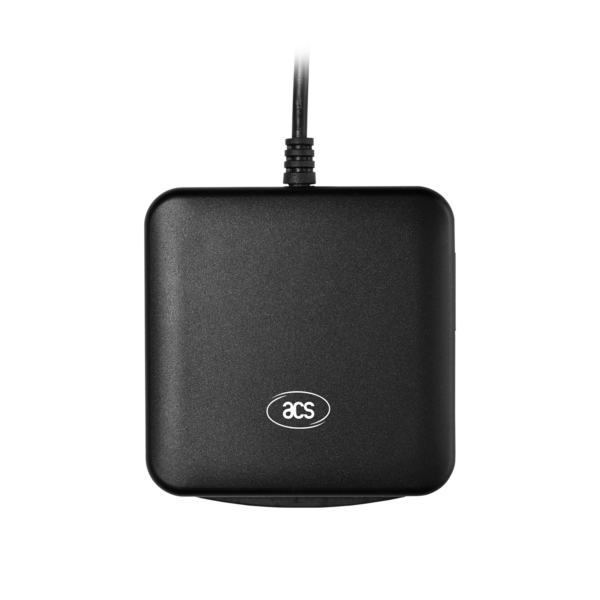

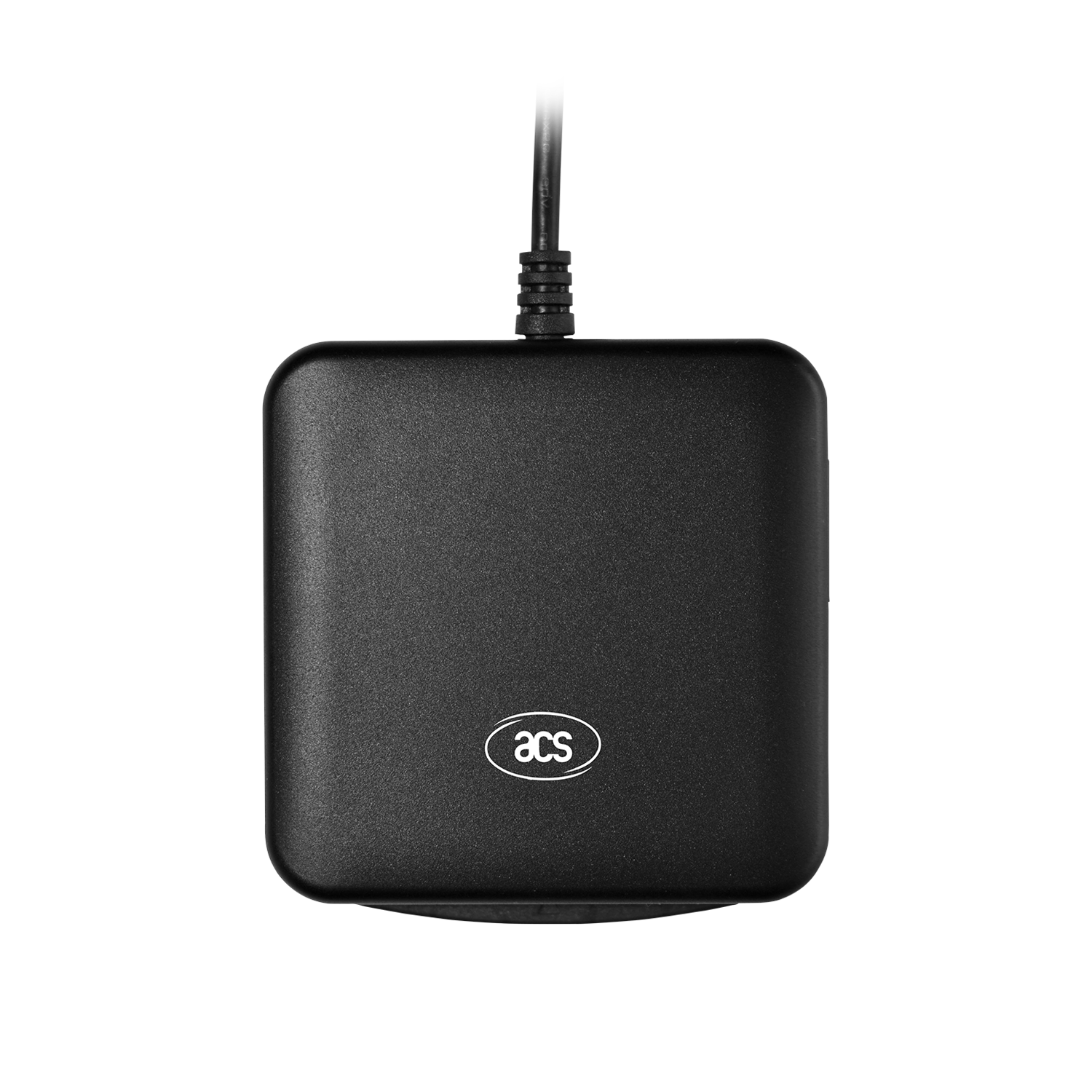

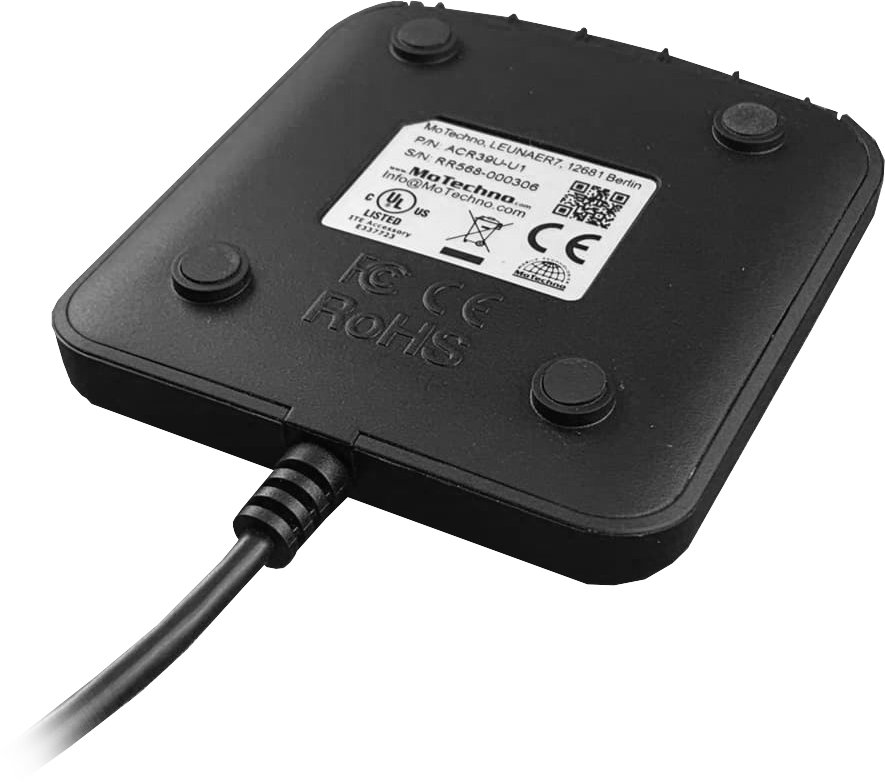

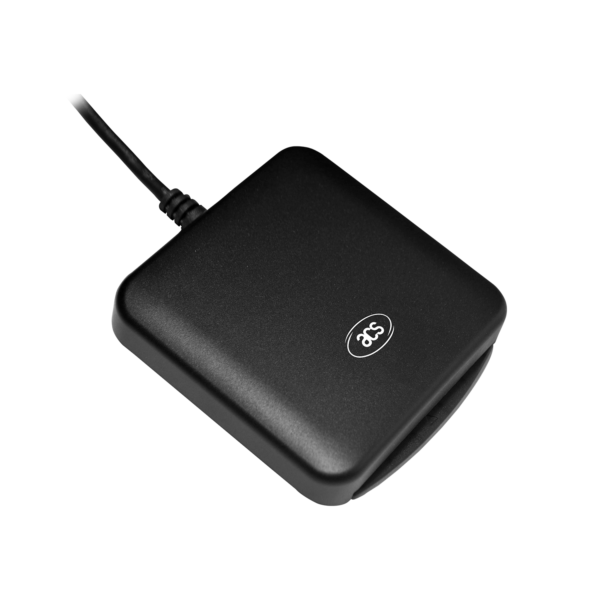

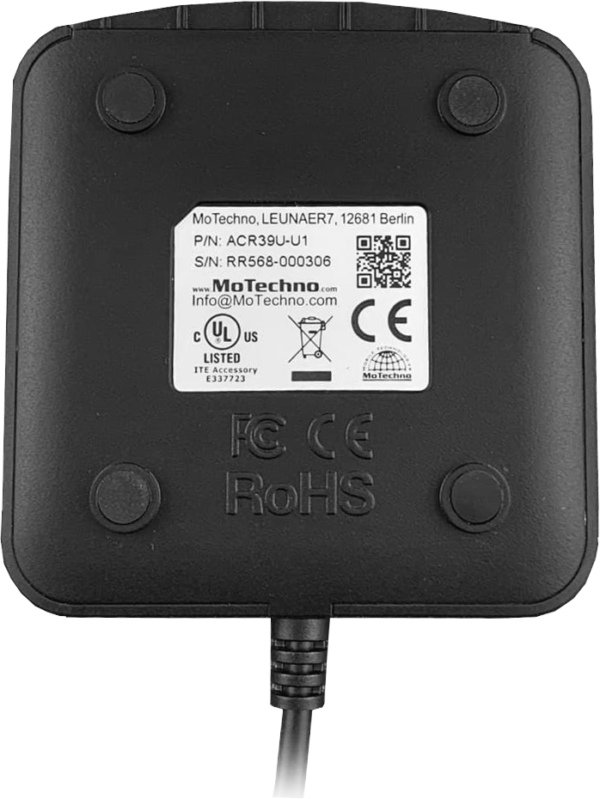

ACR39U

ACR39U Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet rigorous requirements of smart card–based applications.

Description

ACR39U Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet rigorous requirements of smart card–based applications.

It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U can last for 100,000 card insertion cycles. ACR39U also has various certifications, such as EMV 2000 Level 1 and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs

It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux and Mac. Additionally, ACR39U may be used on mobile devices running on the Android™ platform versions 3.1 and above.

With its sleek, stylish design and powerful core, the ACR39U is the ideal peripheral for your smart card applications.



Features:

  • Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards such as:
    • Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
      • Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
      • SGS-Thomson: ST14C02C, ST14C04C
      • Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
    • Cards with intelligent 1k bytes EEPROM with write-protect function, including:
      • Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528
    • Cards with intelligent 256 bytes EEPROM with write-protect function, including:
      • Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)



Applications:

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • Network Security
  • Public Key Infrastructure
  • e-Purse & Loyalty



Tech Specs:

Physical Characteristics
Dimensions (mm) 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H)
Weight (g) 65.0 g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.5 m, Fixed
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950
ISO 7816
USB Full Speed
PC/SC
CCID
EMV Level 1 (Contact)
J-LIS (Japan)
PBOC
TAA (US)
VCCI (Japan)
Microsoft® WHQL
CE
FCC
WEEE
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows®
Linux®
MAC OS®
Solaris
Android™

Additional information

Weight 65 g
Dimensions 72,2 × 69 × 14,5 mm
